borehole geological drilling PQ exploration coring drill bit impregnated core bit

Mining N core bit

borehole geological drilling PQ HQ exploration coring drill bit impregnated core bit

Material: Carbon Steel, Diamond

Matrix Height:12mm

Rock Hardness: F9-11

Size: 122mm

Matrix Type: W

Processing Type: Forging

Certificate: ISO9001

Application: Mineral and Geological Exploration

Condition: New

Machine Type: Drilling Tool

Payment Term:T/T,L/C,Western Union,Alipay

Delivery Port: Beijing/Shanghai/Tianjin




  • Product Detail

The impregnated diamond bitsare the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of bits’ matrix series. The matrix layer of the crown contains a uniform distribution of crystals that are embedded in a powdered metal bond. The matrix is designed to expose new diamonds to the bits' cutting face as wearing occurs. Fast penetration rate is maintained as a result of this action. The main technical parameters of bits are diamond specifications, like type, size, concentration and grade, as well as matrix hardness type and crown shapes, which are selected according to the hardness and abrasiveness of the formation to be drilled. If user can make rational selections according to the rock formations, then they can get satisfied drilling performance on various formations with different hardness.

Impregnated Core Bit Video

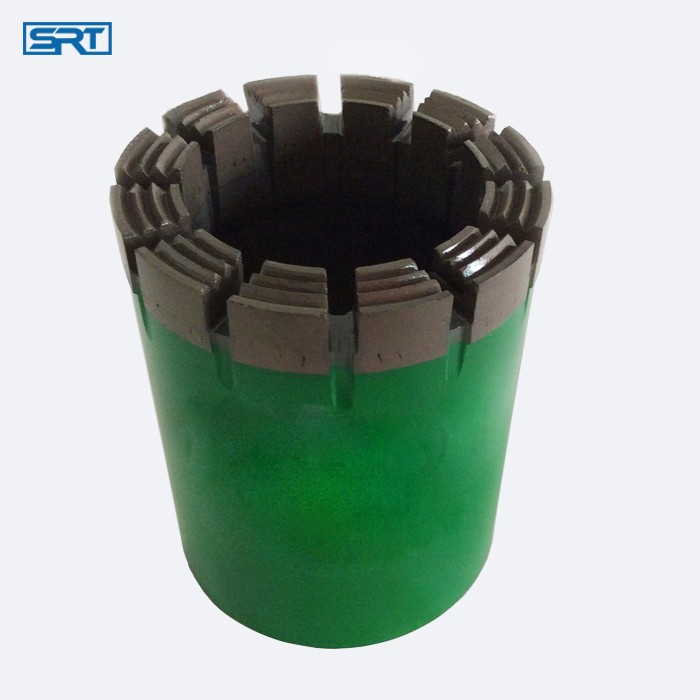

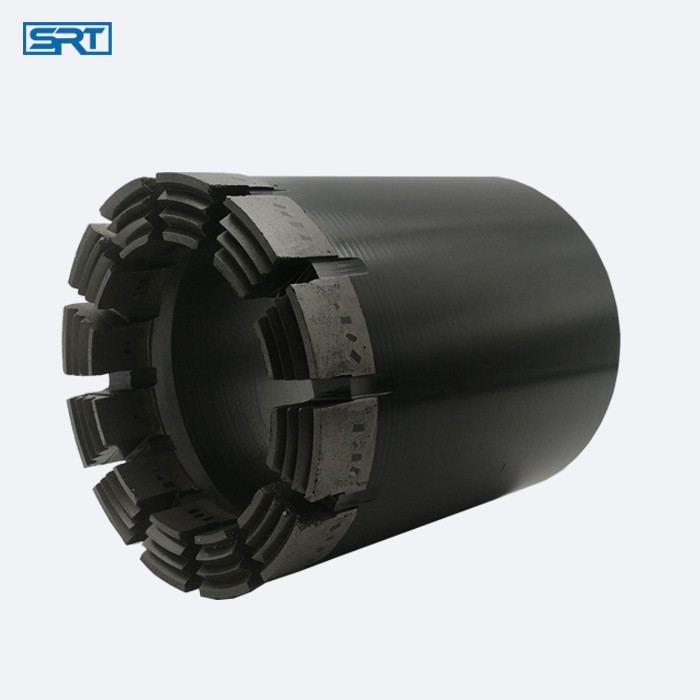

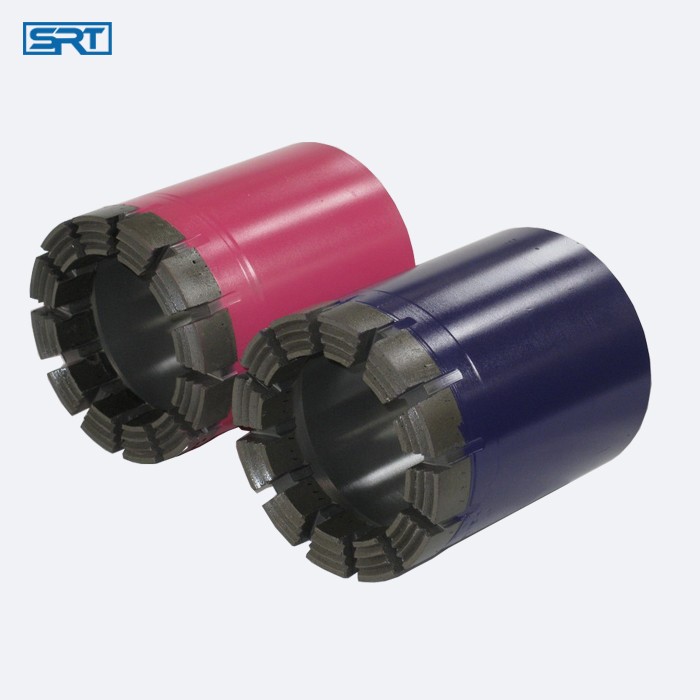

PQ Impregnated Diamond Core Bit W Matrix

Size

PQ

Design

DCDMA

Outer Diameter MAX(mm)

122.30

Outer Diameter MAX(in)

4.815

Outer Diameter MIN(mm)

121.80

Outer Diameter MIN(in)

4.795

Inner Diameter MAX(mm)

85.09

Inner Diameter MAX(in)

3.350

Inner Diameter MIN(mm)

84.84

3.34Inner Diameter MIN(in)

3.340

Hole Diameter(mm)

122.7

Hole Diameter(in)

4.81

Core Diameter(mm)

85.0

Core Diameter(in)

3.34

Hole Area(cm2)

117.2

Hole Area(in2)

18.24

Core Area(cm2)

56.7

Core Area(in2)

8.76



Matrix Height :6mm,8mm,9mm,10mm,12mm,14mm,16mm are available.6mm-8mm (most cost-effective), 8mm-10mm (long service life), 12mm-16mm (super service life)

Bit Crown Profiles: "W" profile, "Flat" profile, "Semi-round" profile, "Cross" profile, "Gear profile"

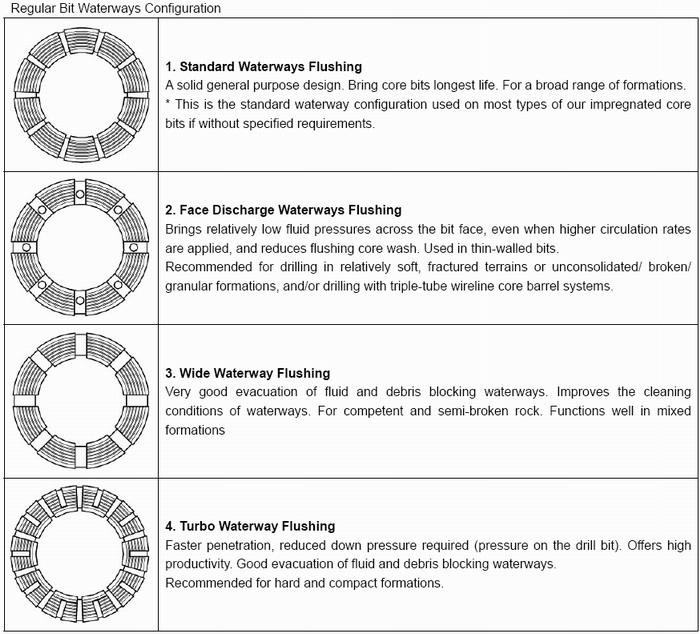

Waterways: Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Threads: standard Q threads as well as thread types required by clients are available




Maxtrix Selection Guide For Impregnated Core Bits

Matrix

Hardness

Rock

Hardness

Abrasiveness

Rock Type

HRC50

Soft

Medium

Clay, shale, siltstone, cypsum

HRC48~50

Soft

Very high

Ash stone, coal, argillite, volcanics, sandy pebble

HRC45~48

Medium soft

Very high

Sandstone,sandy shale, lithoid limestone, limonite sandstone

HRC40~45

Medium

High

Medium-hard limestone,medium-hard shale, ash stone

HRC38~42

Medium

Medium

Marble, hard schist, hard streak stone

HRC38

Medium hard

Medium

Diabase, andesite, gneiss

HRC35~38

Medium hard

Medium

Grandiorite, Limonite

HRC32~35

Hard

Medium to low

Granite, basalt, hard streak stone

HRC25~30

Hard

Medium to low

Rhyolite, crystauize, guneiss, quartz porphyry

HRC20~25

Extreme hard

Medium to low

Silicious stone, hard sandstone

HRC10~20

Ultra hard

Low

Rhyolite, dense quartzite, iron stone

Siruite Available IMP Bit Sizes


Q Series

AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

T2 Series

T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

T6 Series

T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116

T Series

T36, T46, T56, T66, T76, T86

Z Series

Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146

B Series

B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

WF Series

HWF, PWF, SWF, UWF, ZWF

WT Series

RWT, ETW, AWT, BWT, NWT, HWT (Single/Double Tube)

WG Series

EWG, AWG, BWG, NWG, HWG (Single/Double Tube)

WM Series

EWM, AWM, BWM, NWM

Others

NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX,

NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.
