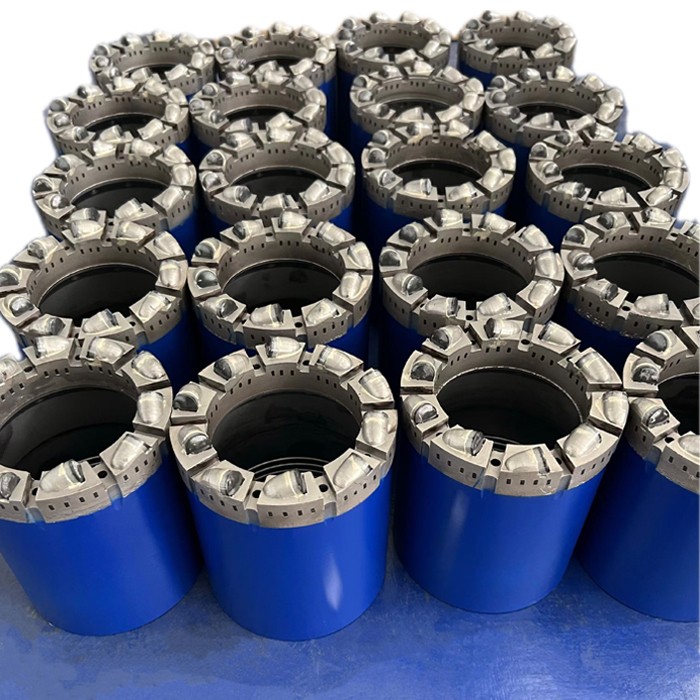

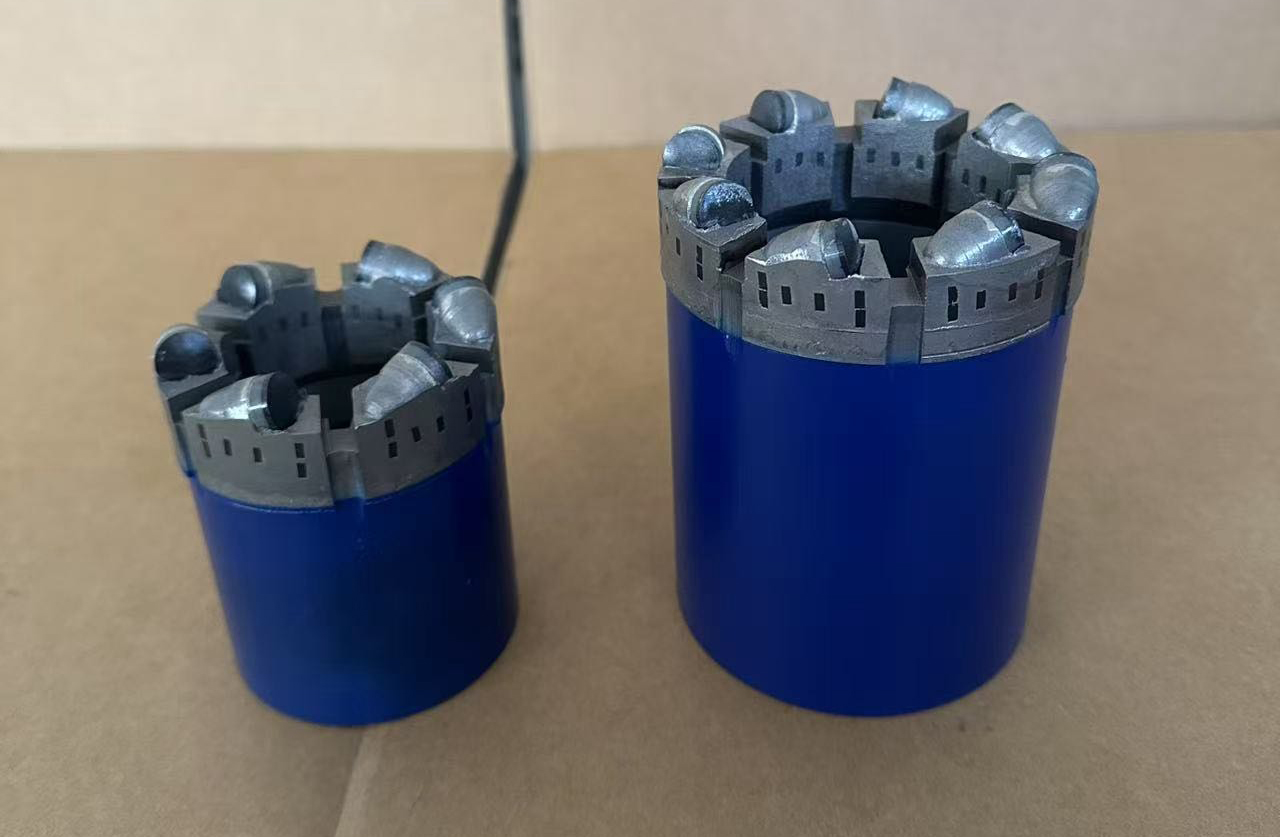

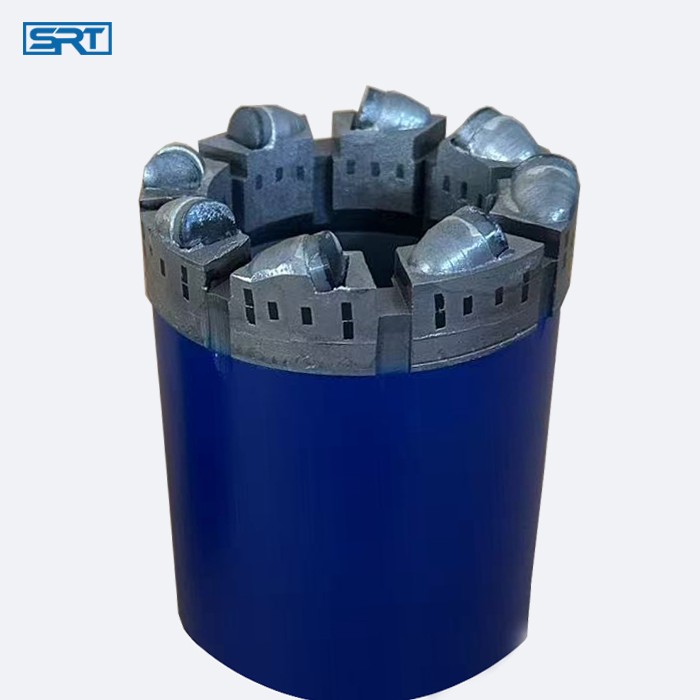

HQ 8 diamonds matrix PDC core bit for golden mine drilling

PDC core bitsPDC (Polycrystalline Diamond Compact) wireline core drill bits are engineered to deliver unmatched performance in gold mining operations. Featuring ultra-wear-resistant diamond cutters and optimized hydraulic design, these bits ensure exceptional penetration rates in hard, abrasive formations while maintaining core integrity. The wireline retrieval system minimizes tripping time, boosting productivity by up to 40% compared to conventional methods. Advanced matrix body construction enhances durability, reducing downtime and tool replacement costs. Ideal for deep exploration, our bits offer superior sample recovery rates (98%+), critical for accurate gold grade analysis. With low vibration and heat generation, they extend borehole life and lower operational risks. Trusted by global miners, our PDC bits maximize ROI through faster drilling cycles and reduced total cost per meter.

HQ PDC Core Bit W Matrix

Size	HQ	Design	DCDMA
Outer Diameter MAX(mm)	95.76	Outer Diameter MAX(in)	3.770
Outer Diameter MIN(mm)	95.38	Outer Diameter MIN(in)	3.775
Inner Diameter MAX(mm)	63.63	Inner Diameter MAX(in)	2.505
Inner Diameter MIN(mm)	63.38	Inner Diameter MIN(in)	2.495
Hole Diameter(mm)	96.1	Hole Diameter(in)	3.78
Core Diameter(mm)	63.5	Core Diameter(in)	2.5
Hole Area(cm2)	72.8	Hole Area(in2)	11.29
Core Area(cm2)	31.7	Core Area(in2)	4.91

Matrix Height :6mm,8mm,9mm,10mm,12mm,14mm,16mm are available.6mm-8mm (most cost-effective), 8mm-10mm (long service life), 12mm-16mm (super service life)

Bit Crown Profiles: "W" profile, "Flat" profile, "Semi-round" profile, "Cross" profile, "Gear profile"

Waterways: Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Threads: standard Q threads as well as thread types required by clients are available

Maxtrix Selection Guide For Impregnated Core Bits

Matrix Hardness	Rock Hardness	Abrasiveness	Rock Type
HRC50	Soft	Medium	Clay, shale, siltstone, cypsum
HRC48~50	Soft	Very high	Ash stone, coal, argillite, volcanics, sandy pebble
HRC45~48	Medium soft	Very high	Sandstone,sandy shale, lithoid limestone, limonite sandstone
HRC40~45	Medium	High	Medium-hard limestone,medium-hard shale, ash stone
HRC38~42	Medium	Medium	Marble, hard schist, hard streak stone
HRC38	Medium hard	Medium	Diabase, andesite, gneiss
HRC35~38	Medium hard	Medium	Grandiorite, Limonite
HRC32~35	Hard	Medium to low	Granite, basalt, hard streak stone
HRC25~30	Hard	Medium to low	Rhyolite, crystauize, guneiss, quartz porphyry
HRC20~25	Extreme hard	Medium to low	Silicious stone, hard sandstone
HRC10~20	Ultra hard	Low	Rhyolite, dense quartzite, iron stone

Siruite Available IMP Bit Sizes

Q Series	AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
T2 Series	T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 Series	T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116
T Series	T36, T46, T56, T66, T76, T86
Z Series	Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B Series	B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WF Series	HWF, PWF, SWF, UWF, ZWF
WT Series	RWT, ETW, AWT, BWT, NWT, HWT (Single/Double Tube)
WG Series	EWG, AWG, BWG, NWG, HWG (Single/Double Tube)
WM Series	EWM, AWM, BWM, NWM
Others	NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.
