URUMQI SIRUITE MECHANICAL EQUIPMENT CO., LTD

sondaj matkap deep water well and HDD project hard rock drilling diamond drilling bits

PDC Bit

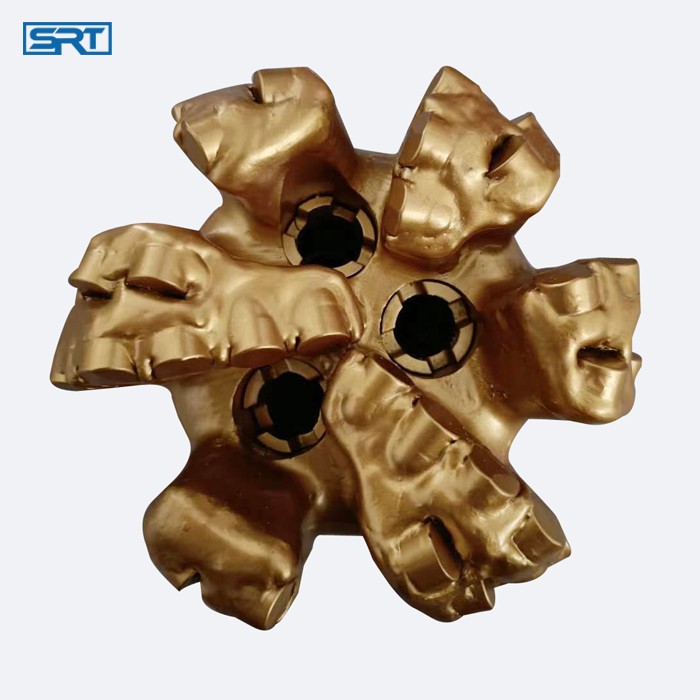

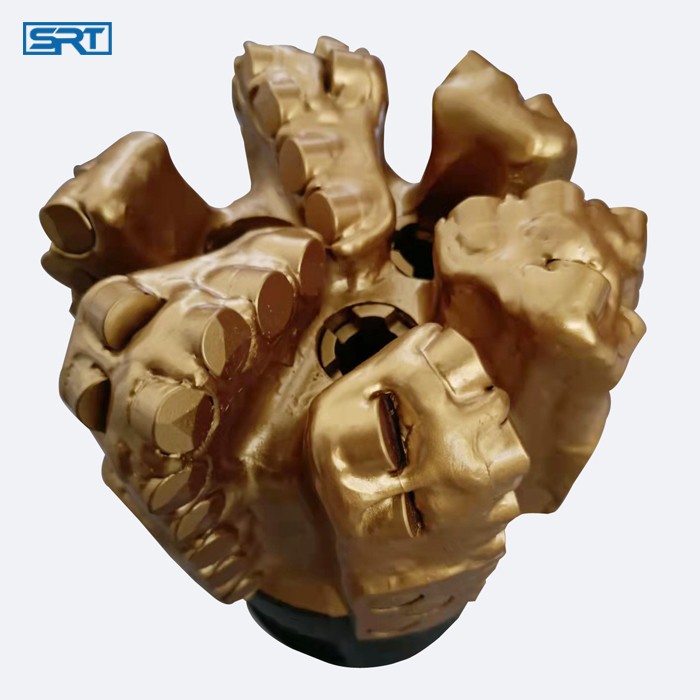

152mm 6 wings sondaj matkap deep water well and HDD project hard rock drilling diamond drilling bits

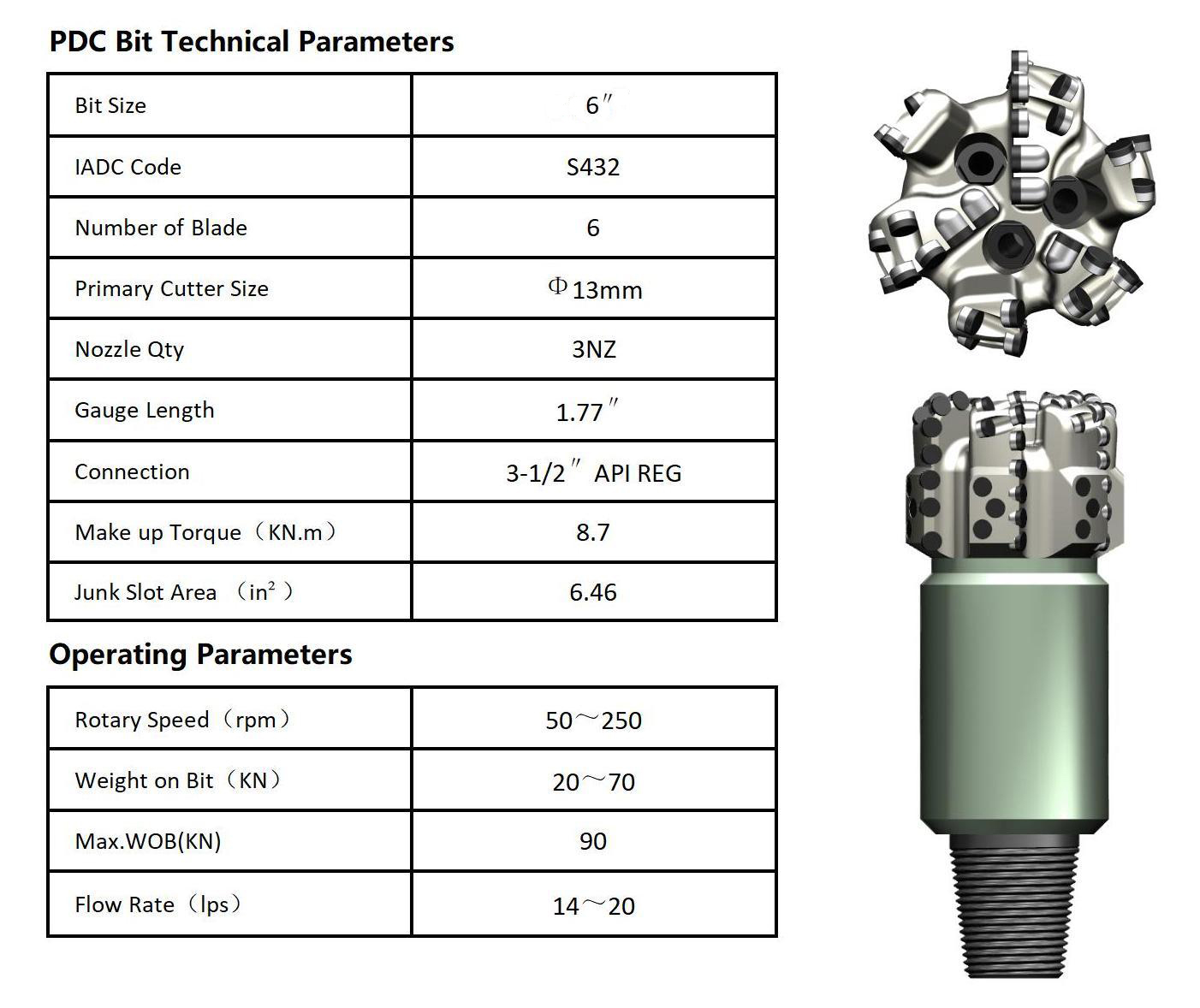

Bit Size:6 in(152mm)

IADC Code: S432

Number of Blades:6

Main Cutter Size:13mm

Nozzle Qty:3 pcs

Gauge Length:1.77"

Pin Connection:3 1/2" API reg

Rotary Speed(RPM):50-250

Weight on Bit(kN):20-70

Max.WOB(kN):90

Displacement :14-20lps

  • Product Detail


HS Series Premium PDC Bit HS series PDC bit is tough and durable drilling tool, the mechanically simple fixed cutter designation allows it to go through complicated HDD drilling project and super deep vertical oil well drilling with unrivalled speed and boring quality . It has been proven over hundreds of working cases, HS series is designed and built to the highest engineering and manufacturing standards by Precise Drilling Materials and Components.It’s our Premium Quality PDC tools. HS Series fixed cutter PDC bit is API7-1 and ISO9001-2015 standard and available in sizes ranging from 4 1/2” to 17 1/2”.

HS Premium PDC Diamond Bit Structure


  • Siruite offers a wide variety of fixed-gear drills(PDC and diamond set) that can be used in a wide variety of operating environments.Directional drilling steel or matrix body PDC bits for improved directional drilling performance.
  • Patented benz gears.it can form the best contacting point and get the best drilling effect.it has high rock -breaking efficiency,low cutting resistance,and can be directed to cutting removal.it has higher impact resistance and mud pack resistance than plane composite sheet.the cutting ridge line is beneficial to drill into the stratum,which has higher cutting efficiency and longer service life than flat one.it can adopt different substrates according to different stratum.


What Kind of PDC Bit is Suitable for Your Drilling




PDC Drill Bit Packages for Delivery by Sea/Air

(plywood+iron case+foam cushion)
