surface set PDC HQ NQ PQ front end reamer diamond reaming shell

Mining N core bit

surface set PDC HQ NQ PQ front end reamer diamond reaming shell

Material: Carbon Steel, surface set Diamond,TC,PCD,electroplated diamond

Size:HQ,NQ,PQ,PQ,AQ type (regular and lengthened)

Processing Type: Forging

Certificate: ISO9001

Application: Mineral Exploration,Geological Drilling

Condition: New

Machine Type: Drilling Tool

Payment Term:T/T,L/C,Western Union,Alipay

Delivery Port: Beijing/Shanghai/Tianjin




  • Product Detail

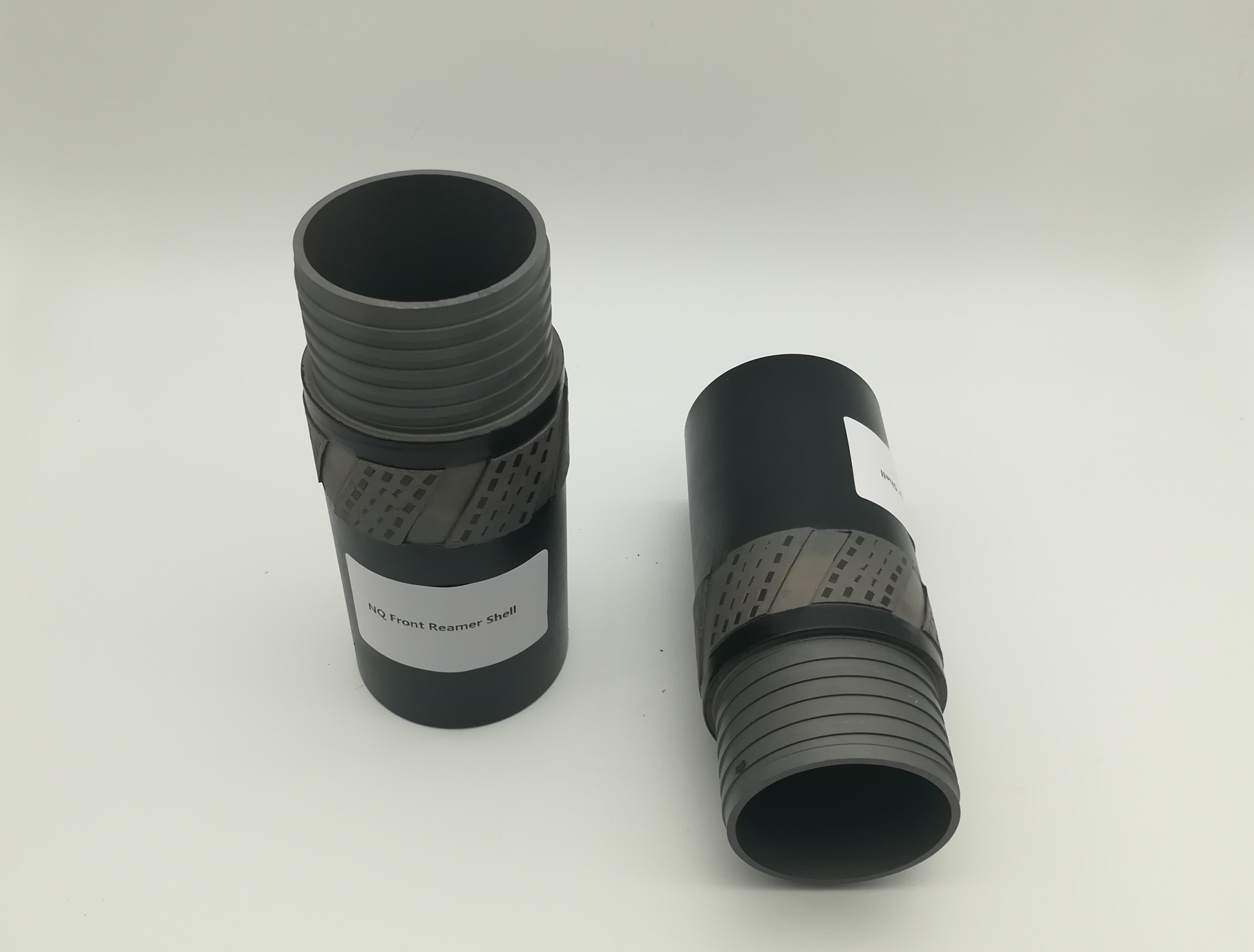

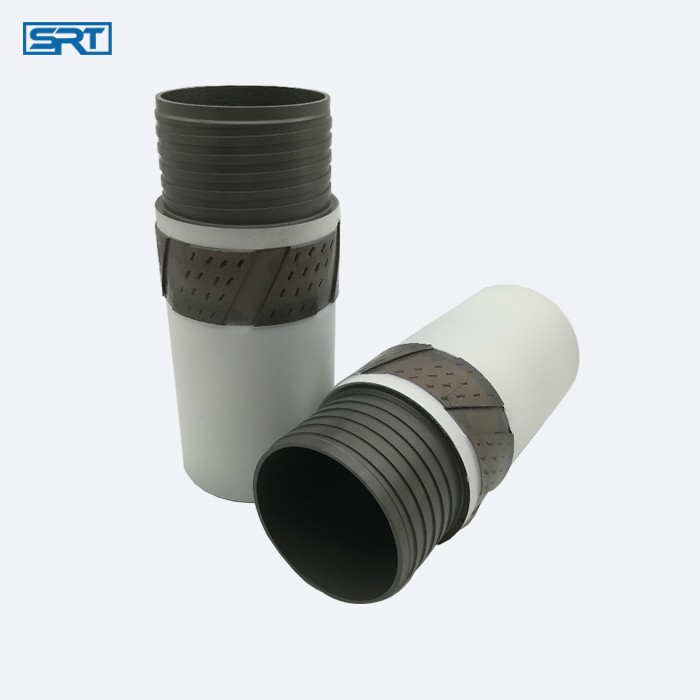

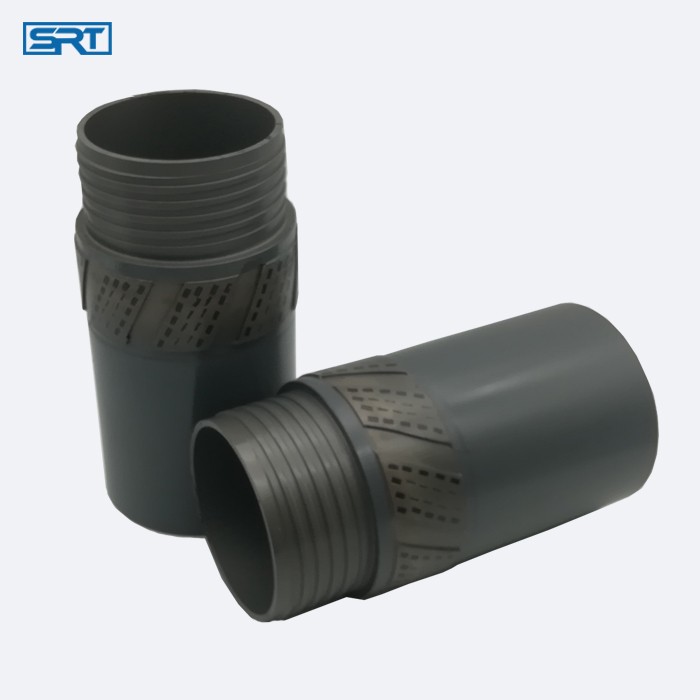

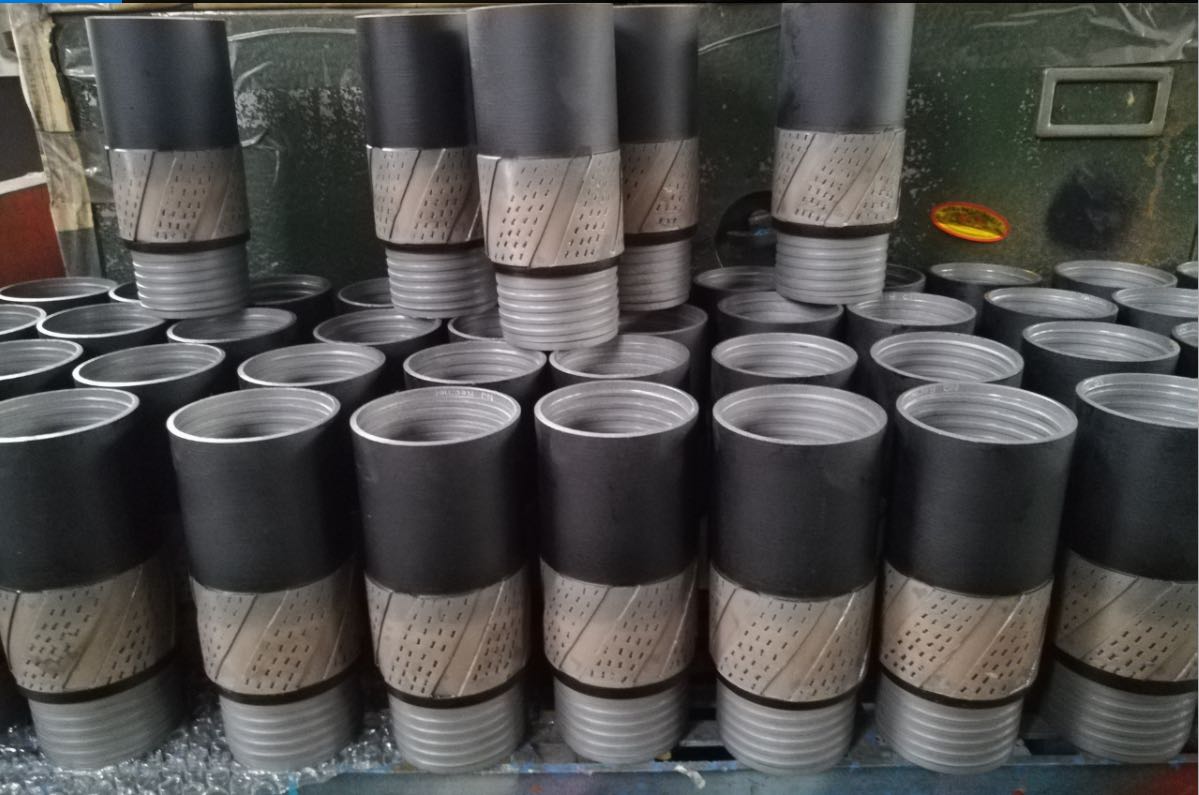

Diamond Reaming Shell Diamond Reaming Shell is a very important reamer tool to be used together with core bits in core drilling.It's set with natural or synthetic diamonds.The new design includes T.C. type, PCD type and Electroplated diamond type.its main application is to ream the hole to the correct constant specific diameter which ensures adequate clearance for the core barrel and sufficient clearance for the new bit which replaces an old one. It also acts as a stabilizer for drill bits , improving drill rods stability and protecting lower part of drill rod from excessive wear. Reaming shells (with double tube core barrel or triple tube core barrel) are suitable to use in all formation conditions ranging from broken and abrasive to consolidated and non abrasive.

Reaming Shell Vedio




Five Types of Reaming Shells to Choose

  • 1.Surface Set Diamond Type
  • 2.Impregnated Diamond Type
  • 3.Tungsten Carbide Type
  • 4.PCD Type
  • 5.Electroplated Diamond Type

Correspondent Reaming Shell Outer Diameter

Code

ODmm

ID (mm)

Reaming shell 0.D.(mm)

AQ

47.60

27

48

BQ

59.6

36.4

60

NQ

75.3

47.6

75.7

HQ

96

63.5

96

PQ

122.2

85

122.7

TNW

75.3

60.5

75.5

T2101

101

84

101.5

T6131

131

108

131.5

NMLC

75

52

75.5

HMLC

98

63.5

98.5

NWM

75.3

54.7

75.8

Coring Sizes

Double tube surface

Size(surface exploration drill)

Metric system(mm)

Imperial system(in)

Hole diameter

Core diameter

Hole diameter

Core diameter

BQ

60

36.4

2.36

1.43

NQ

75.7

47.6

2.98

1.88

HQ

96.1

63.5

3.78

2.5

PQ

122.7

85

4.83

3.34

Triple tube surface

NQ3

75.7

45

2.98

1.78

HQ3

96.1

61.1

3.78

2.41

PQ3

122.7

83

4.83

3.27
