311mm TCI tricone bit IADC537 for vertical water well drilling

Tricone Bit

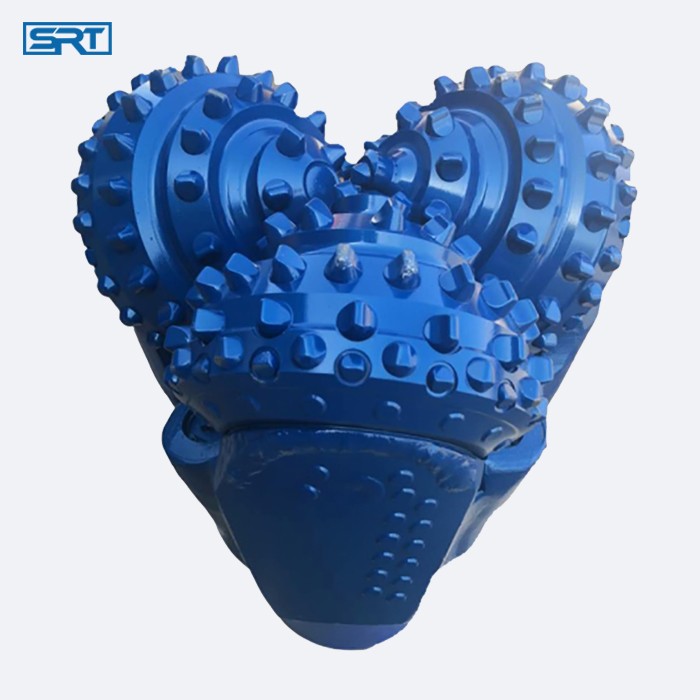

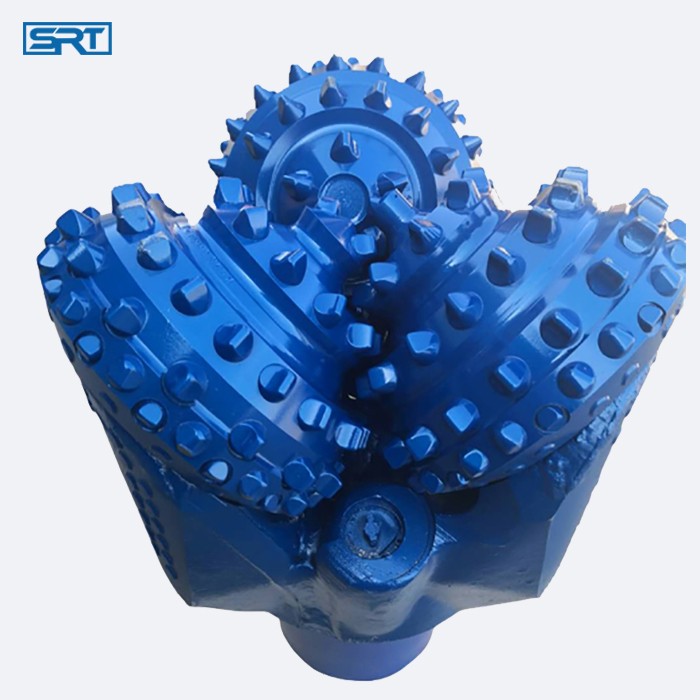

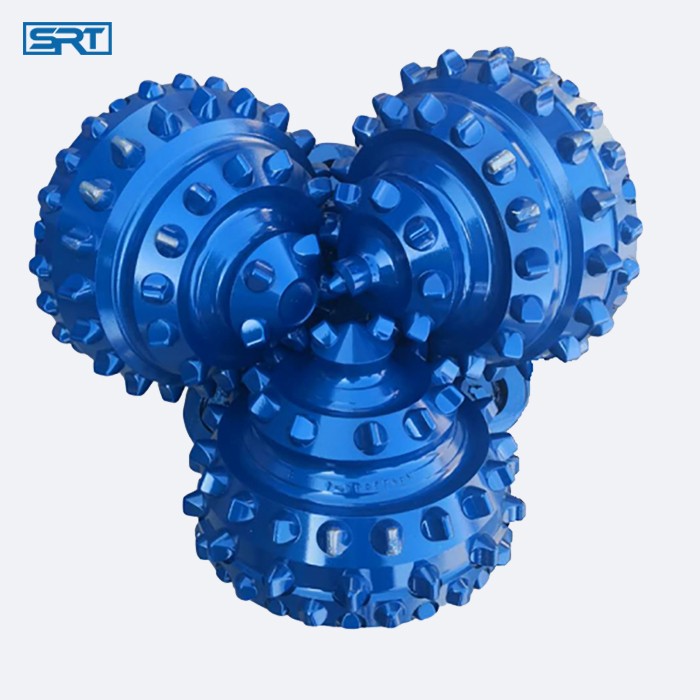

311mm rotary rock drilling TCI tricone bit IADC537 for underground vertical water well drilling

Size : 12 1/4"( 311.1mm)

IADC CODE :537

Brand:Siruite

Bearing Type: Rubber Sealed Journal

Processing Type: Forging

Teeth Type: Premium Tungsten Carbide Insert

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection: 6 5/8" API reg pin

N/W,G/W : 100kg/ 107kg

Dimenstion: 350*350*480mm

Application : Water/petroleum/gas fuel/geothermal well drilling

  • Product Detail

Product Description



SSA Series Tricone Drill Bit

SSA series is an extremely durable line of drill bits covering a wide array of application.SHA bits incorporate an O-ring sealed journal bearing.This line can withstand high WOB under normal rotary conditions.

Journal Bearing-incorporates two thrust faces and cone bearings inlaid with a friction reducing alloy and then silver plated.The bearing boasts increased load capacity and seizure resistance.SSA series tricone drill bits are widely used in oil/petroleum/gas well drilling, deep underground water well drilling. this kind of quality roller tricone bit is excellent in hard rock drilling. Its tungsten carbide insert teeth are adopted premium material in China. And its price is very competitive compared quality . Your first choice if you have high requirements in water well drilling .

Rotary Tricone Bit Video



ssa tricone bit technical data

How to choose suitable tricone rock bit

The suitable bits with higher cost performance is the most important.Such as, high class bits are not cost-effective for general water well drilling. Because the water well drilling rig can’t drive the supreme quality bits to perform their best.But for deep water drilling, first class rock bits are cost-effective though it’s worth more.When inquiring, Please tell us more details about your drilling project so that we can recommend best suitable bits for your reference.
Tricone Bit Instruction

Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation.Validity:The roller bit should be utilized within four years after resembling.Type Selection:Appropriate bit should be choosen according to drilling formation lithology and reference on the conjoint well.

Siruite Roller Bit Packages for Delivery
