kingdream metal sealed 12 1-4inch oil drilling rotary rock drill steel teeth tricone bits

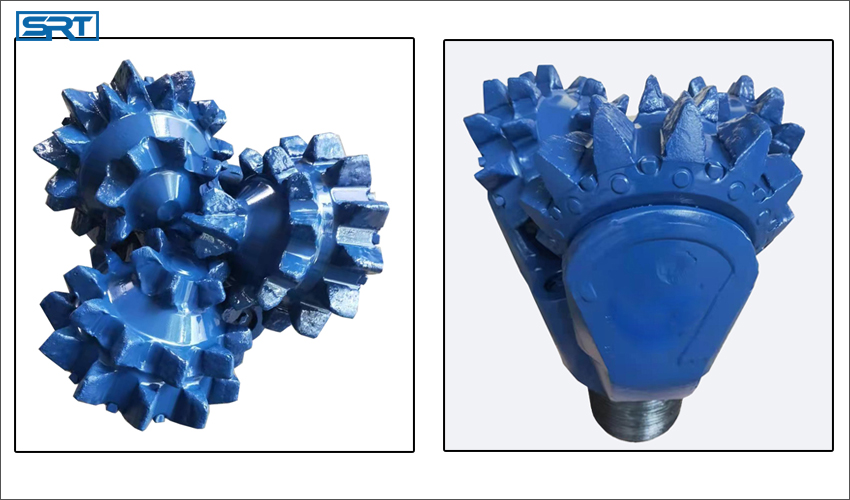

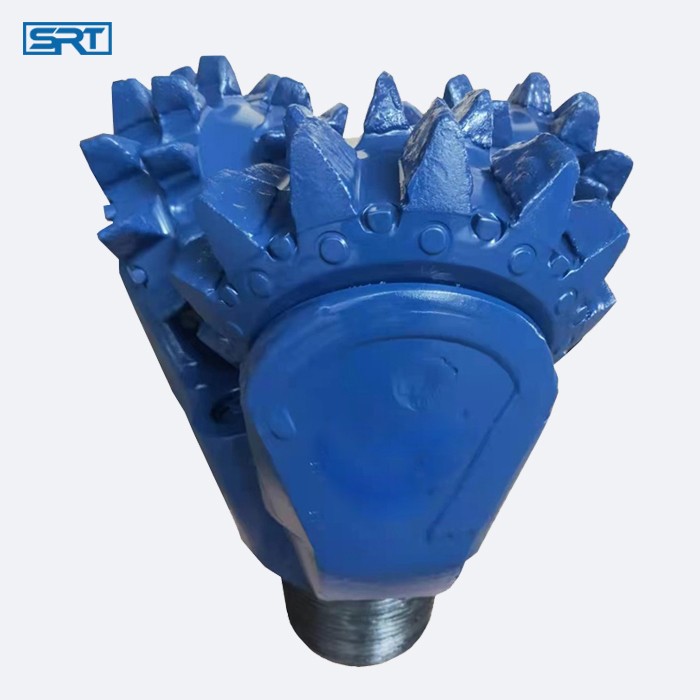

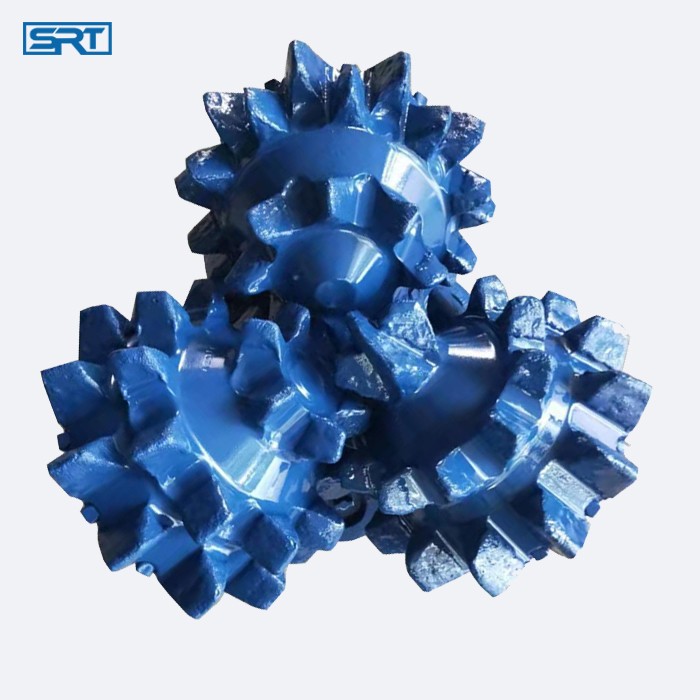

Tricone Bit

kingdream metal sealed 12 1-4inch oil drilling rotary rock drill steel teeth tricone bits

Size : 12 1/4"( 444.5mm)

IADC CODE :127

Bearing Type: Metal Sealed Journal

Processing Type: Casting

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection:6 5/8" API reg pin

N/W,G/W : 100kg/ 107kg

Dimenstion: 350*350*480mm

Application : Water/petroleum/gas/geothmeral well drilling

  • Product Detail

Product Description



SSA Series Tricone Drill Bit

SSA series is an extremely durable line of drill bits covering a wide array of application.SHA bits incorporate an O-ring sealed journal bearing.This line can withstand high WOB under normal rotary conditions.

Journal Bearing-incorporates two thrust faces and cone bearings inlaid with a friction reducing alloy and then silver plated.The bearing boasts increased load capacity and seizure resistance.

SSA series tricone drill bits are widely used in oil/petroleum/gas well drilling, deep underground water well drilling.

Kingdream metal sealed 12 1-4inch oil drilling rotary rock drill steel teeth tricone bits



ssa tricone bit technical data

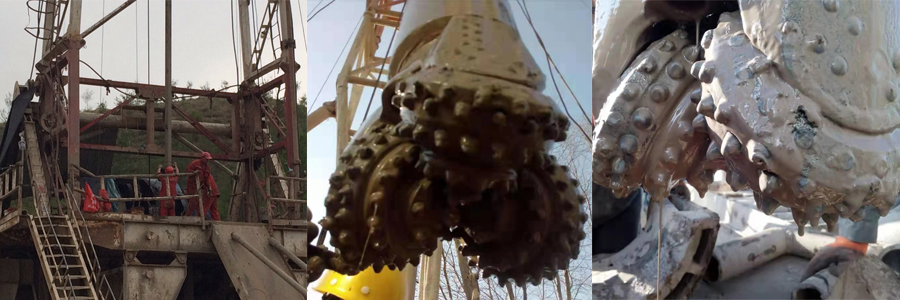

Siruite Rock Bit Production Lines


Siruite-Bit only concentrates on Quality Rock Bits. Since year 1992, we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices. We supply the drilling industry with quality well drilling tools. such as, Tricone bits, Hammers and Hammer Bits, PDC Bits,Hole Opener, Drag Bits ,Core bits and Directional Drilling Tools.

We can deliver to over 100 different countries, and serve industries such as Construction, Oil and Gas drilling, Mining, Horizontal Directional Drilling crossing (HDD), Water, Geothermal,irrigation and Environmental. Our high-efficiency staff is always standby to give you a hand in everything from choosing the best suitable drill bit to shipping around the globe by air,by sea or by land.

If you source for rock drill bits, Contact us without hesitation anytime.



How to choose suitable tricone rock bit

The suitable bits with higher cost performance is the most important.Such as, high class bits are not cost-effective for general water well drilling. Because the water well drilling rig can’t drive the supreme quality bits to perform their best.But for deep water drilling, first class rock bits are cost-effective though it’s worth more.When inquiring, Please tell us more details about your drilling project so that we can recommend best suitable bits for your reference.

Tricone Bit Instruction

Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation.

Storage:There is rubber piece and lubricating grease in tricone bit,So it can not be stored in the open air.and be damp proof. The temperature should be 0-40 centigrade degrees. No welding,heating and other processing is permitted on bit.

Validity:The roller bit should be utilized within four years after resembling.

Type Selection:Appropriate bit should be choosen according to drilling formation lithology and reference on the conjoint well

Siruite Roller Bit Packages for Delivery
