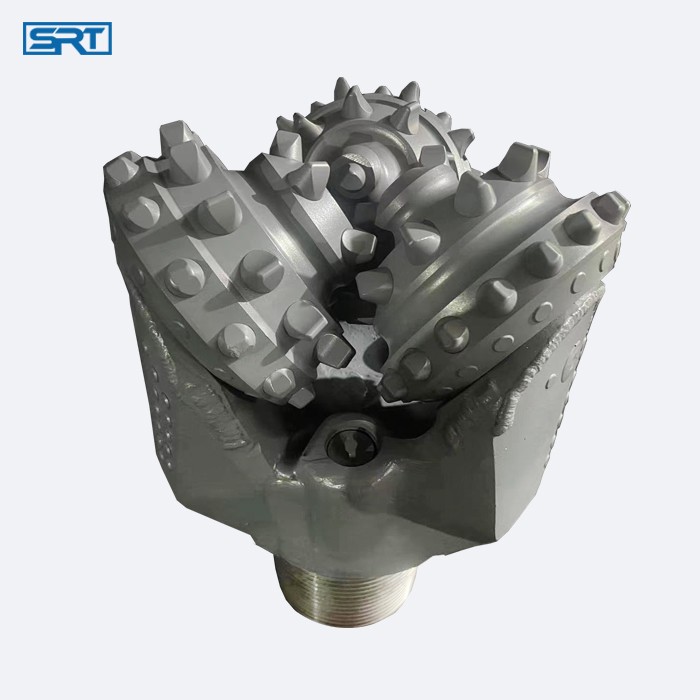

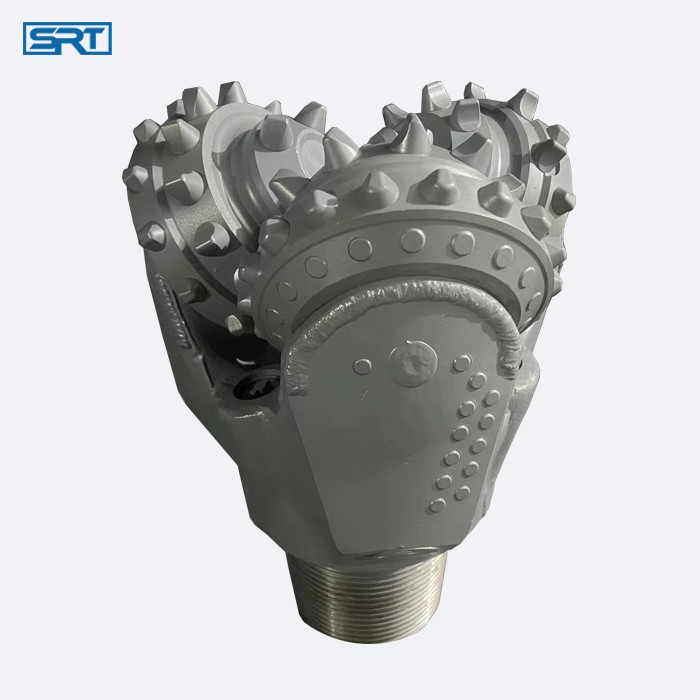

Tricone Bit

12 1-4 rock drilling liquids water borehole drilling equipments enviromental drilling tools

Size : 311.1mm 12 1/4"

IADC CODE :437G

Bearing Type: Rubber O-ring Sealed Journal

Suitable Formation:Soft

Processing Type: Forging

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection: 6 5/8" API reg pin

N/W,G/W :97kg/ 105kg

Dimenstion: 350*350*480mm

Application : underground water borehole well drilling/deep drilling liquid

  • Product Detail

Product Description

Introducing our competitively-priced Tri-cone Drill Bits, ideal for regular water well drilling.  they offer consistently stable performance, making them perfect for price-conscious customers who still desire reliability.Our Tri-tooth Drill Bits prove that quality, consistency, and affordability can coexist, and fast production doesn't have to compromise stability. If you're in search of a budget-friendly drilling solution that balances performance and price, look no further than our Tri-tooth Drill Bits. With us, you'll drill more for less, without compromising on consistency. this kind of rock roller bit is suitable for drilling ground water well drilling . it has very competitive price. If drilling oilfields, other series tricone bits will be recommened.


How to choose suitable tricone rock bit Formation Type: Understand the type of formation you will be drilling into. Different formations require specific tricone bit designs and cutting structures. For example, soft formations may benefit from a bit with large, widely spaced teeth, while hard formations may require a bit with smaller, closely spaced teeth. Bearing Type: Tricone bits come with different bearing types, including journal bearings and sealed roller bearings. Journal bearings are cost-effective but less durable, while sealed roller bearings offer better performance and longevity. Choose a bearing type that suits your drilling conditions and budget. Bit Size and Connection: Consider the required bit size and connection type. The bit size should match your drilling requirements, and the connection should be compatible with your drilling rig's specifications. Tooth Type: Tricone bits can have different tooth types, such as milled tooth or tungsten carbide inserts (TCI). Milled tooth bits are suitable for softer formations, while TCI bits are more effective in harder formations. Evaluate the formation hardness to determine the appropriate tooth type. Gauge Protection: Check if the tricone bit has adequate gauge protection. The gauge refers to the outer edge of the bit, which is prone to wear and damage. Enhanced gauge protection helps prolong the bit's lifespan and maintain stability during drilling. Brand Reputation: Consider the reputation and reliability of the tricone bit manufacturer. Reputable brands often provide high-quality, durable bits that deliver consistent performance. Budget: Set a budget for your tricone bit purchase. While it's essential to find a cost-effective option, prioritize quality and performance over the lowest price. Investing in a durable bit can save you money in the long run.

Tricone Bit Instruction
Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation. Storage:There is rubber piece and lubricating grease in tricone bit,So it can not be stored in the open air.and be damp proof. The temperature should be 0-40 centigrade degrees. No welding,heating and other processing is permitted on bit. Validity:The roller bit should be utilized within four years after resembling. Type Selection:Appropriate bit should be choosen according to drilling formation lithology and reference on the conjoint well.
Siruite Roller Bit Packages for Delivery
