Sealed Bearing Journal  Rock Roller Bits for Medium Hard rock Drilling

Tricone Bit

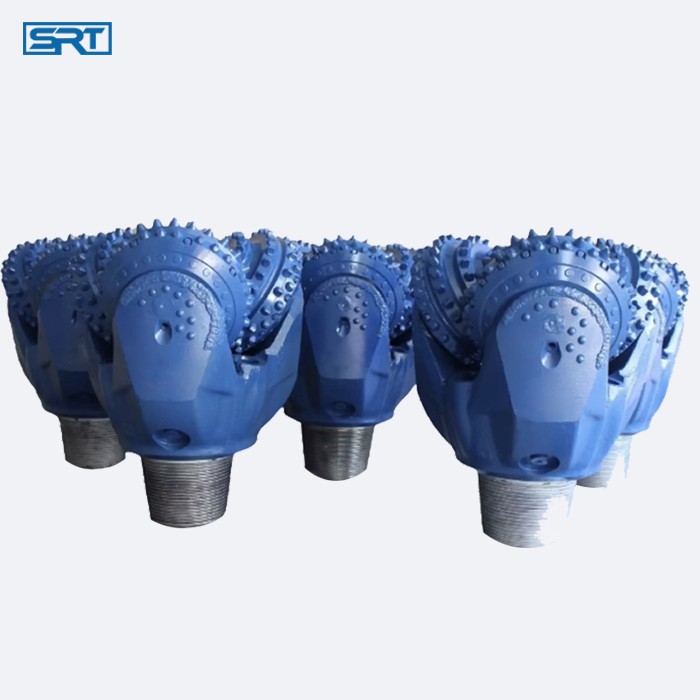

374mm IADC537 rubber Sealed Bearing Journal broca triconica Rock Roller Bits for Medium Hard Rock Drilling

Size :14 3/4"(374mm)

IADC CODE :537

Bearing Type: Elastomer Sealed Bearing Journal

Suitable Formation:Soft to Medium,Medium

Processing Type: Forging

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection: 7 5/8" API reg pin

N/W,G/W :175kg/ 185kg

Dimenstion: 480*480*610mm

Application : Water/oil/gas/geothmeral well drilling

  • Product Detail

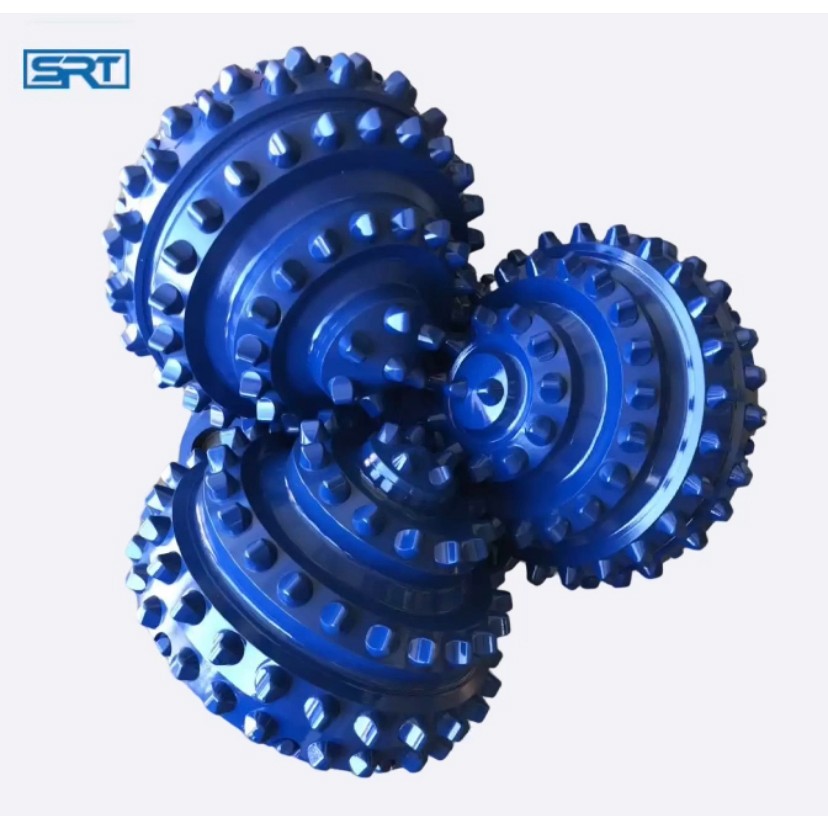

SST Series Tricone Drill Bit

The teeth of SST series Wear resistance is enhanced with premium tungsten carbide hardfacing. on the tooth surface, for steel tooth bit.The well comprehensive mechanical drilling performance of premium tungsten carbide inserts is improved with new formulas and new techniques . Multiple gauge protection inserts with gauge trimmers on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.high precision journal bearing with two thrustfaces.Balls lock the cone .Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy and then silver-plated.Abrasion resistance and seizure resistance of the bearing are improved,and suitable for high rotary speed. Ball lock cones, which optimize the R slot size of tooth and cone and the tolerance clearance of steel ball ,to prevent rock falling off efficiently.

374mm IADC537 Sealed Bearing Journal  Rock Roller Bits for Medium Hard Hole Drilling

SSJ series bit sizes and operation parameters

How to choose suitable tricone rock bit

Formation Type: Understand the type of formation you will be drilling into. Different formations require specific tricone bit designs and cutting structures. For example, soft formations may benefit from a bit with large, widely spaced teeth, while hard formations may require a bit with smaller, closely spaced teeth. Bearing Type: Tricone bits come with different bearing types, including journal bearings and sealed roller bearings. Journal bearings are cost-effective but less durable, while sealed roller bearings offer better performance and longevity. Choose a bearing type that suits your drilling conditions and budget. Bit Size and Connection: Consider the required bit size and connection type. The bit size should match your drilling requirements, and the connection should be compatible with your drilling rig's specifications. Tooth Type: Tricone bits can have different tooth types, such as milled tooth or tungsten carbide inserts (TCI). Milled tooth bits are suitable for softer formations, while TCI bits are more effective in harder formations. Evaluate the formation hardness to determine the appropriate tooth type. Gauge Protection: Check if the tricone bit has adequate gauge protection. The gauge refers to the outer edge of the bit, which is prone to wear and damage. Enhanced gauge protection helps prolong the bit's lifespan and maintain stability during drilling. Brand Reputation: Consider the reputation and reliability of the tricone bit manufacturer. Reputable brands often provide high-quality, durable bits that deliver consistent performance. Budget: Set a budget for your tricone bit purchase. While it's essential to find a cost-effective option, prioritize quality and performance over the lowest price. Investing in a durable bit can save you money in the long run.

Tricone Bit Instruction

Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation. Storage:There is rubber piece and lubricating grease in tricone bit,So it can not be stored in the open air.and be damp proof. The temperature should be 0-40 centigrade degrees. No welding,heating and other processing is permitted on bit. Validity:The roller bit should be utilized within four years after resembling. Type Selection:suitable bit should be choosen according to drilling formation lithology and reference on the conjoint well.

Siruite Roller Bit Packages for Delivery
