API 311mm IADC437 long teeth very soft formation drilling TZ tricone rock bit

Tricone Bit

API 311mm IADC437 long teeth very soft formation drilling TZ tricone rock bit

Size : 12 1/4" (311.1mm

IADC CODE :437

Brand: TZ

Bearing Type:combined bearing type

Processing Type: Forging

Teeth Type: wide big teeth

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection: 6 5/8" API reg pin

N/W,G/W : 98kg/ 107kg

Dimenstion: 350*350*480mm

Application : Water/oilfields/gas fuel/geothermal well drilling

  • Product Detail

Product Description

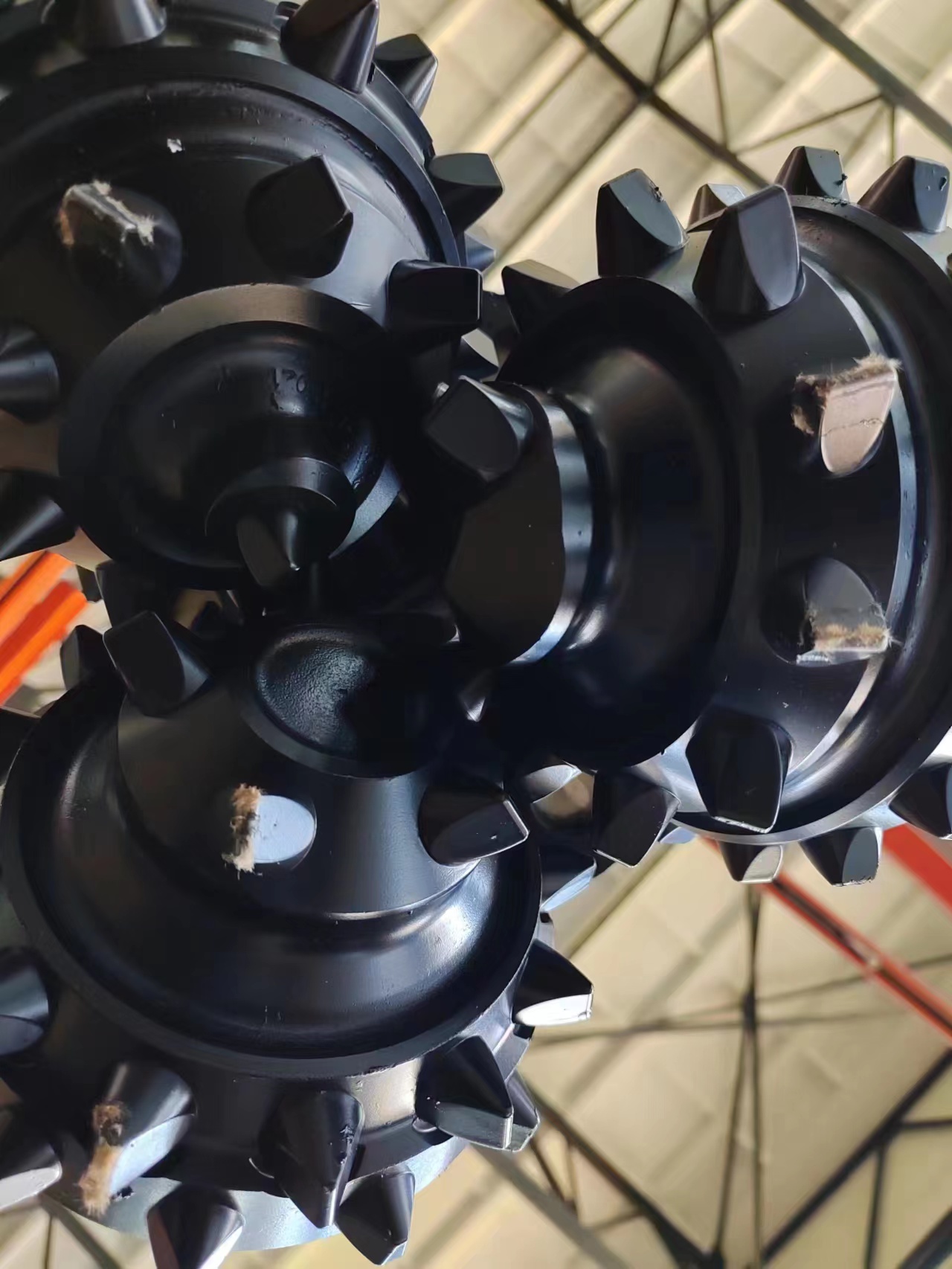

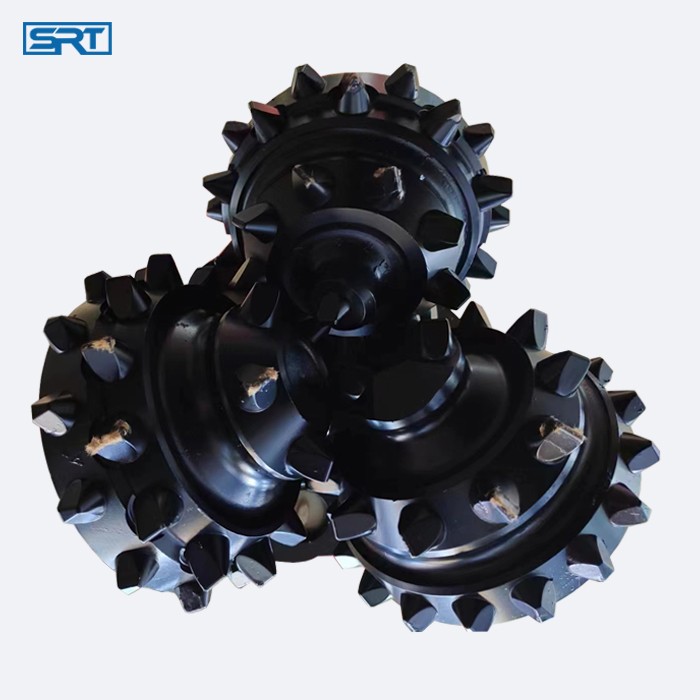

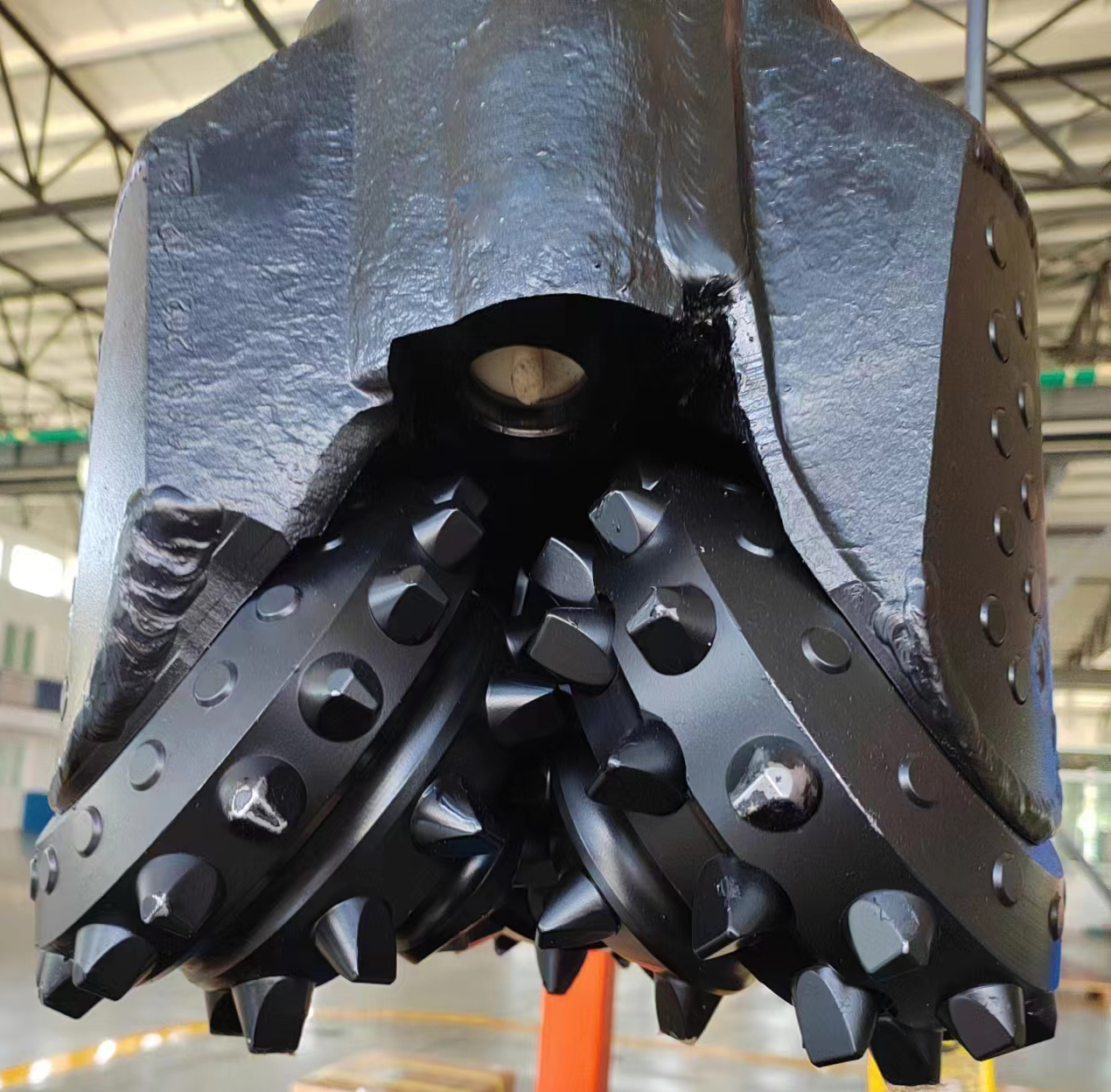

LILIN TZ three-cone roller bit has a long-standing presence in the Chinese market. It has been widely used in various drilling operations, ranging from oil and gas exploration to geothermal drilling. With its advanced design and reliable performance, LILIN has earned a substantial market share in China. Its popularity can be attributed to several key factors.

1. LILIN TZ three-cone roller bit offers exceptional durability and longevity. It is designed to withstand the challenging drilling conditions, including abrasive formations and high temperatures. The use of high-quality materials and advanced manufacturing techniques ensures its extended lifespan and reduces the need for frequent replacements.

2. the bit's efficient drilling capabilities make it highly sought after. The LILIN TZ three-cone roller bit is engineered to optimize drilling efficiency by reducing torque and increasing the rate of penetration. This results in faster drilling speeds, reduced downtime, and improved overall drilling performance.

3. LILIN TZ three-cone roller bit is known for its versatility. It can adapt to various drilling formations and is effective in both soft and hard rock formations. This versatility enhances its applicability across different drilling projects, making it a preferred choice for many drilling operators in China.

How to choose suitable tricone rock bit

The suitable bits with higher cost performance is the most important.Such as, high class bits are not cost-effective for general water well drilling. Because the water well drilling rig can’t drive the supreme quality bits to perform their best.But for deep water drilling, first class rock bits are cost-effective though it’s worth more.When inquiring, Please tell us more details about your drilling project so that we can recommend best suitable bits for your reference.
Tricone Bit Instruction

Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation.Validity:The roller bit should be utilized within four years after resembling.Type Selection:Appropriate bit should be choosen according to drilling formation lithology and reference on the conjoint well.

Siruite Roller Bit Packages for Delivery
