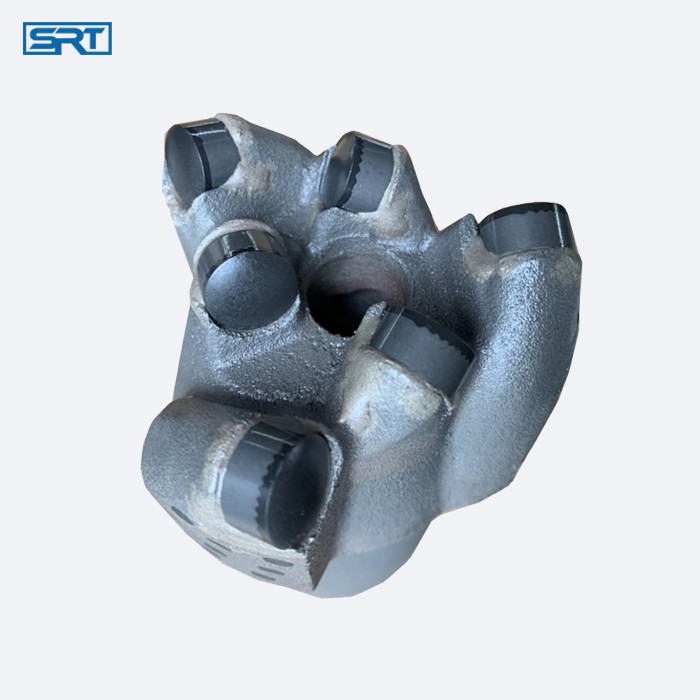

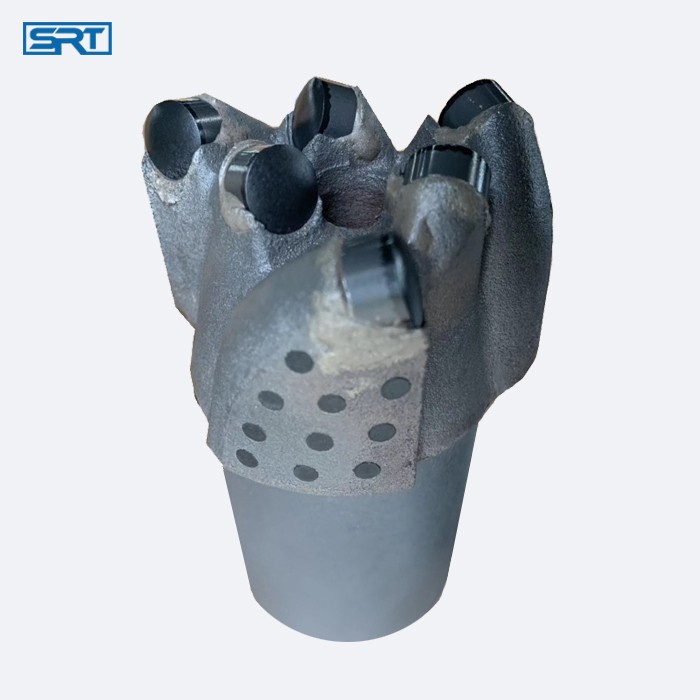

76mm 1308 sintered non core PDC flat face rock drill bits with TSP gauge

PDC Non-coring Bit Sintered flat PDC non-coring bit is a matrix body type.It’s made from tungsten carbide and alloy steel. Tungsten carbide is one kind of metal materials which is made of refractory metal carbide and binder by powder metallurgy. Tungsten carbide character is very hard and wear-resistance that makes the drill bit have a long service life. And the PDC cutters can be replaced according to drilling condition.Superior raw material makes PDC bits serve wide applications in hole drilling such as coal mining ,water and oil well drilling.

Flat Face PDC Bit Main Specifications

PDC Flat face Drill Bit-Matrix Body
Size	Head Type	Body Type	PDC cutter	Protect Type	Thread Connection	Hole No.	Hole Size(ID)	Suitable Formation
46	Flat PDC bit	Matrix	4	pcd /tsp reinforced	AW/BW/API	1	15mm	F=(5-12) Suitable for hard,very hard,ultra hard rock formation drilling
56	Flat PDC bit	Matrix	4	pcd /tsp reinforced	AW/BW/API	1	15mm
60	Flat PDC bit	Matrix	5	Pcd /tsp reinforced	AW/BW/API	1	15mm
66	Flat PDC bit	Matrix	5	pcd /tsp reinforced	AW/BW/API	1	15mm
76	Flat PDC bit	Matrix	6	pcd /tsp reinforced	AW/BW/API	1	15mm
95	Flat PDC bit	Matrix	7	pcd /tsp reinforced	AW/BW/API	1	15mm
113	Flat PDC bit	Matrix	10	pcd /tsp reinforced	AW/BW/API	1	15mm
133	Flat PDC bit	Matrix	11	pcd /tsp reinforced	AW/BW/API	3	15mm

Tungsten carbide sintered matrix body non core PDC bit(PDC flat face frill bit) is made by with PDC cutter brazed to Matrix Body. With

higher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters,

the bit has enhanced reliability and drilling efficiency.

ADVANTAGES

1. ISO9001: 2008 certificated, CE certificated

2. Economic grade,general grade,enhanced grade,top grade PDC bits are avaiable,to meet your different drilling requirement.

3.We make matrix bit ourselves,good quality control,good cost

4.Enough stock ,fast shipment.

gher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters,

the bit has enhanced reliability and drilling efficiency.

APPLICATIONS
Mainly used in coal mining,water well,geothermal well,dam construction,blasthole,oil das drilling. Suitable for medium hard to hard,very hard rock,like limestone,sandstone,quartz,gravel,marble,granite,basalt,etc.
