75mm matrix flat face PDC non core bits for grouting and drainage

Mining N core bit

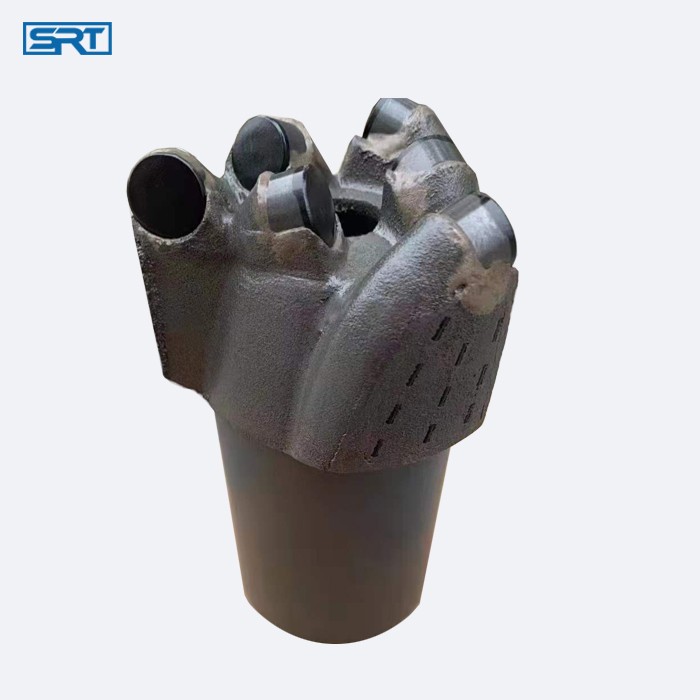

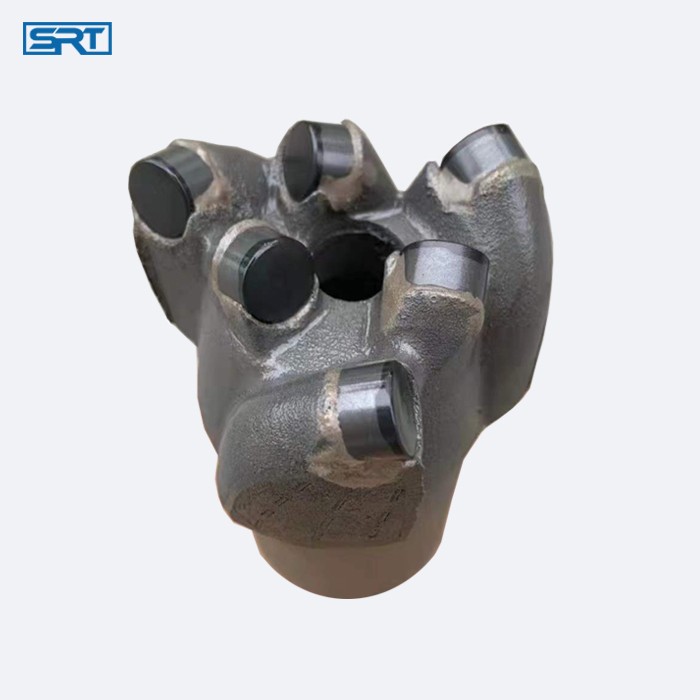

75mm matrix flat face PDC non core bits for grouting and drainage

Material: Carbon Steel, tungsten carbide , dimaond PDC cutters

Size:75mm

Diamond Qty: 6 pcs

Diamond Level: Oil Cutter

Diamond PCD thickness:1.8-2.0mm

Gauge Protection:PCD or TSP strips

Quality Level: Standard,Reinfored,Premium

Thread Connection:BW ,AW, API

Processing Type: Forging

Certificate: ISO9001

Application: Mineral Mining and Water Well Drilling

Condition: New

Machine Type: Drilling Tool

Payment Term:T/T,L/C,Western Union,Alipay

Delivery Port: Beijing/Shanghai/Tianjin




  • Product Detail

PDC Non-coring Bit Sintered flat PDC non-coring bit is a matrix body type.It’s made from tungsten carbide and alloy steel. Tungsten carbide is one kind of metal materials which is made of refractory metal carbide and binder by powder metallurgy. Tungsten carbide character is very hard and wear-resistance that makes the drill bit have a long service life. And the PDC cutters can be replaced according to drilling condition.Superior raw material makes PDC bits serve wide applications  in hole drilling such as coal mining ,water and oil well drilling.



Flat Face Matrix PDC Bit Main Specifications

PDC Flat face Drill Bit-Matrix Body

Size

Head Type

Body Type

PDC cutter

Protect Type

Thread Connection

Hole No.

Hole Size(ID)

Suitable

Formation

46

Flat PDC bit

Matrix

4

pcd /tsp

reinforced

AW/BW/API

1

15mm

F=(5-12)

Suitable for hard,very hard,ultra hard rock formation drilling

56

Flat PDC bit

Matrix

4

pcd /tsp

reinforced

AW/BW/API

1

15mm

60

Flat PDC bit

Matrix

5

Pcd /tsp

reinforced

AW/BW/API

1

15mm

66

Flat PDC bit

Matrix

5

pcd /tsp

reinforced

AW/BW/API

1

15mm

76

Flat PDC bit

Matrix

6

pcd /tsp

reinforced

AW/BW/API

1

15mm

95

Flat PDC bit

Matrix

7

pcd /tsp

reinforced

AW/BW/API

1

15mm

113

Flat PDC bit

Matrix

10

pcd /tsp

reinforced

AW/BW/API

1

15mm

133

Flat PDC bit

Matrix

11

pcd /tsp

reinforced

AW/BW/API

3

15mm

Tungsten carbide sintered matrix body non core PDC bit(PDC flat face frill bit)  is made by with PDC cutter brazed to Matrix Body. With

higher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters,

the bit has enhanced reliability and drilling efficiency.


ADVANTAGES

1. ISO9001: 2008 certificated, CE certificated

2. Economic grade,general grade,enhanced grade,top grade PDC bits are avaiable,to meet your different drilling requirement.

3.We make matrix bit ourselves,good quality control,good cost

4.Enough stock ,fast shipment.

gher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters,


the bit has enhanced reliability and drilling efficiency.


APPLICATIONS
Mainly used in coal mining,water well,geothermal well,dam construction,blasthole,oil das drilling. Suitable for medium hard to hard,very hard rock,like limestone,sandstone,quartz,gravel,marble,granite,basalt,etc.
