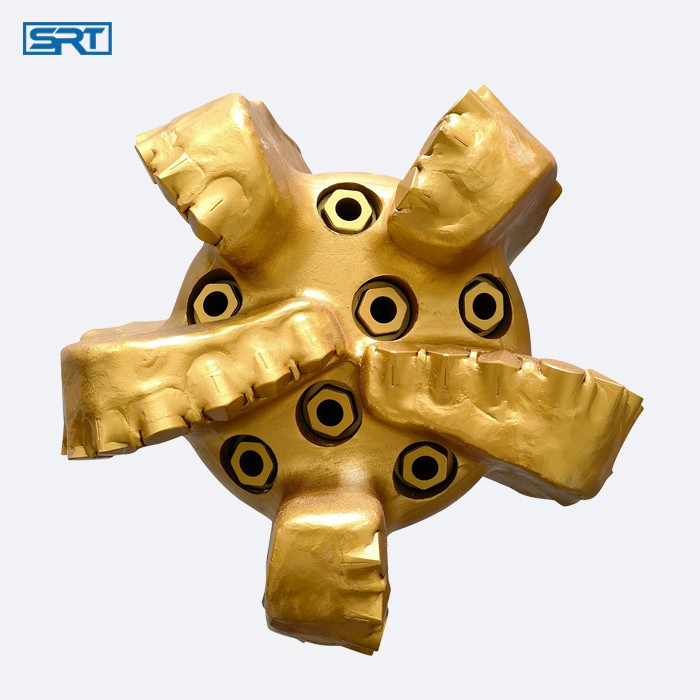

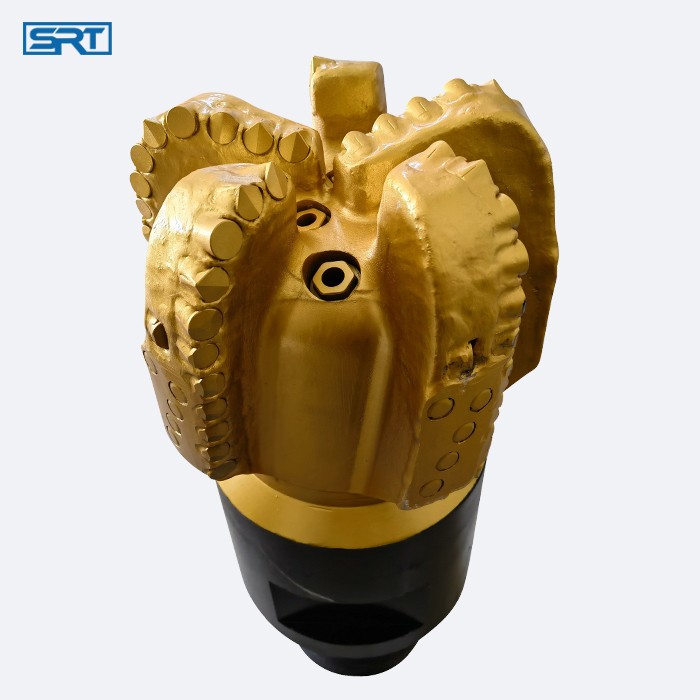

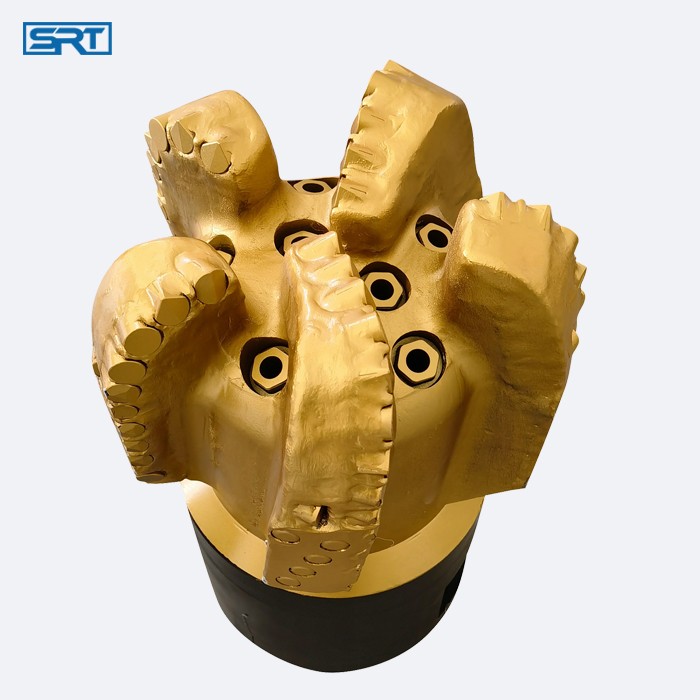

API 165mm Horizontal directional HDD and oil drilling fixed PDC diamond bit

API 165mm Horizontal directional HDD and oil drilling fixed PDC diamond bit

Bit Size:6 1/2in(165mm)

IADC Code: S322

Number of Blades:5

Main Cutter Size:16mm

Nozzle Qty:5pcs

Gauge Length:2.5"

Pin Connection:3 1/2" API reg

Rotary Speed(RPM):50-300

Weight on Bit(kN):20-70

Max.WOB(kN):100

Flow Rate: 14-20lps

Product Detail

HS Series Premium PDC Bit

HS series PDC bit is tough and durable drilling tool, the mechanically simple fixed cutter designation allows it to go through complicated HDD drilling project and super deep vertical oil well drilling with unrivalled speed and boring quality . It has been proven over hundreds of working cases, HS series is designed and built to the highest engineering and manufacturing standards by Precise Drilling Materials and Components.It’s our Premium Quality PDC tools. HS Series fixed cutter PDC bit is API7-1 and ISO9001-2015 standard and available in sizes ranging from 4 1/2” to 17 1/2”.

HS Series Oil PDC Bit Structure

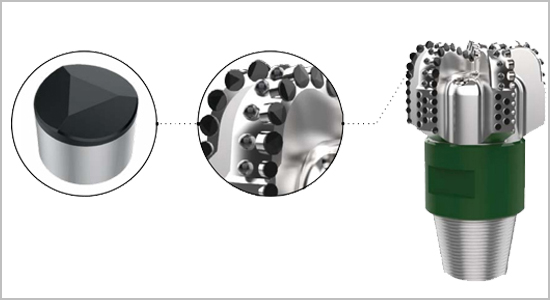

1)Patented benz gears.it can form the best contacting point and get the best drilling effect.it has high rock -breaking efficiency,low cutting resistance,and can be directed to cutting removal.it has higher impact resistance and mud pack resistance than plane composite sheet.the cutting ridge line is beneficial to drill into the stratum,which has higher cutting efficiency and longer service life than flat one.it can adopt different substrates according to different stratum.

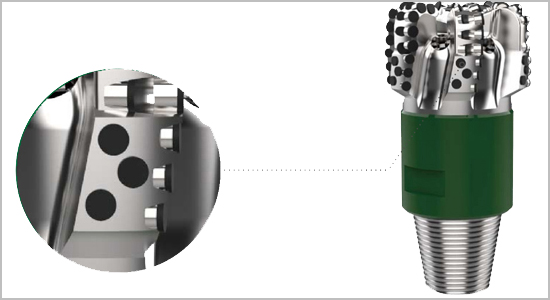

2)Directional short bail design is easy to adjust the tool surface during orientation, and increase the slope rate.

Fixed Oil PDC Drill Bit Packages for Delivery
