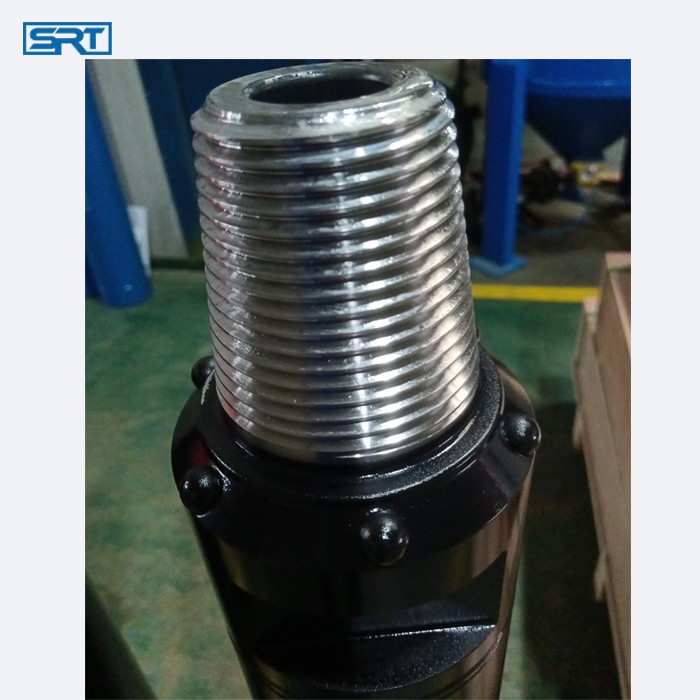

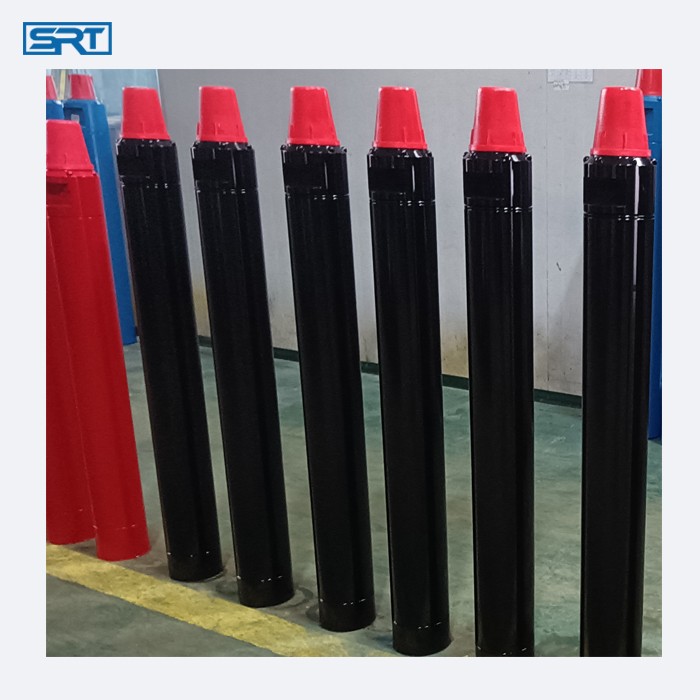

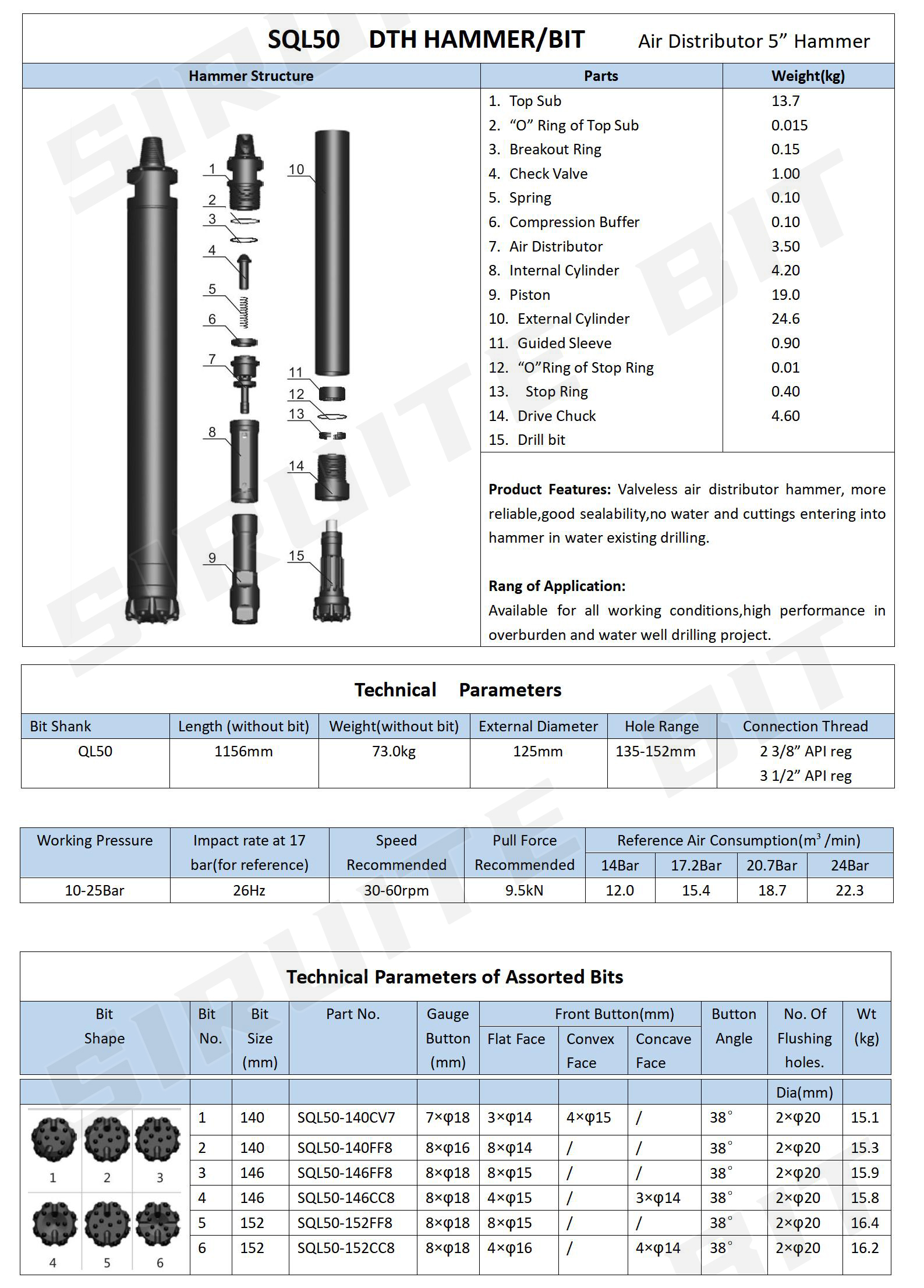

5 inch QL50 DTH hammer for water borehole drilling and coal mining

Size :5 inch

Model:SQL5

Brand: Siruite

Shank ：QL50

Foot valve: With

Certificate: API 7-1

Pin Connection: 2 3/8" or 3 1/2" API reg

Type:valveless air distributor

Hole Range:135-152mm

N/W,G/W : 73kg/ 78kg

Dimenstion:1180*135*135mm

Application : ore /coal mining,deep water drilling,energy drilling

Product Detail

Tags: borehole drilling bit DTH hammer bit

PREVIOUS：High air pressure DHD380 without foot valve premium quality DTH hammers

NEXT：high quality high pressure 8 inch QL80 DTH hammer of mining machines

Leave a Reply

Siruite Drilling Tools Limited Company with registered trademark "SRT" is only specialized in manufacturing quality rock drill bits .Since year 1992, we have kept our clients ahead of schedule and under budget by providing the highest quality tools at the best possible prices. We supply the drilling industry with quality well drilling tools which meet API 7-1 and ISO international standard. such as, Tricone bits, PDC Bits,Hammers and Hammer Bits, Hole Openers,Core bits and Directional Drilling Tools.

As a supplier of CNPC company, We have the advanced production equipments and very strict quality control team.No matter in domestic or overseas markets, quality is the first foundation.We have five warehouses in different cities of China ,that can ensure more convenient and fast delivery around the world .We can send the bits to over 100 different countries, and serve industries such as Construction Project , Oil and Gas well drilling, mineral Mining, Horizontal Directional Drilling crossing (HDD), Water, Geothermal,irrigation and Environmental well drilling.

Our high-efficiency staff is always standby to give you a hand in everything from choosing the best suitable drill bit to ship to your country by sea ,by air or by land. If you source for rock drill bits, Contact us without hesitation anytime. .

.
