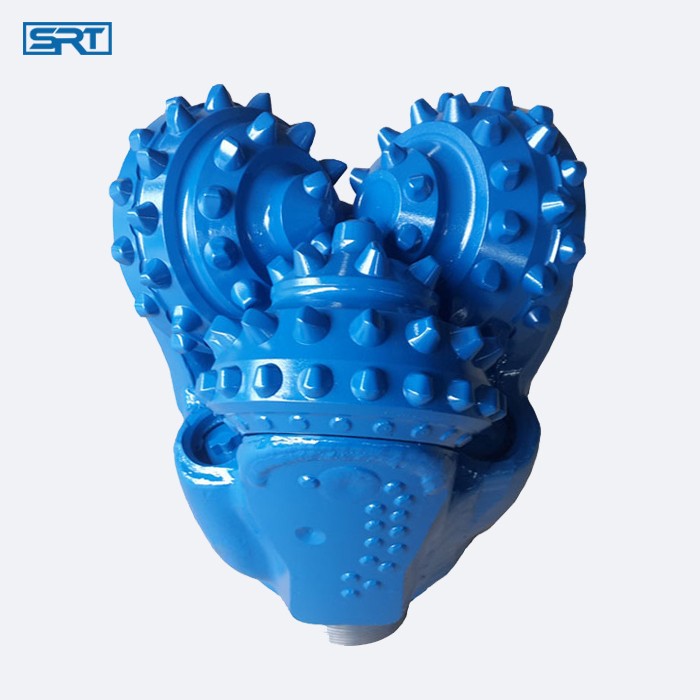

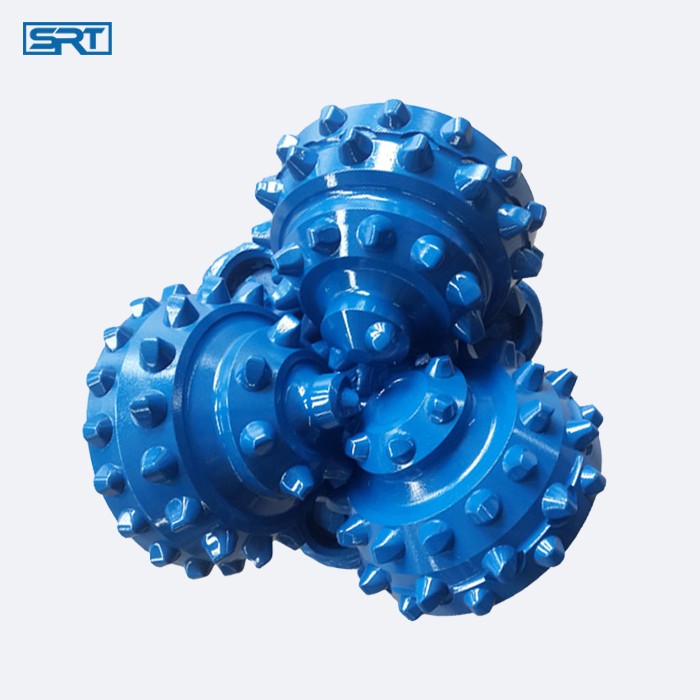

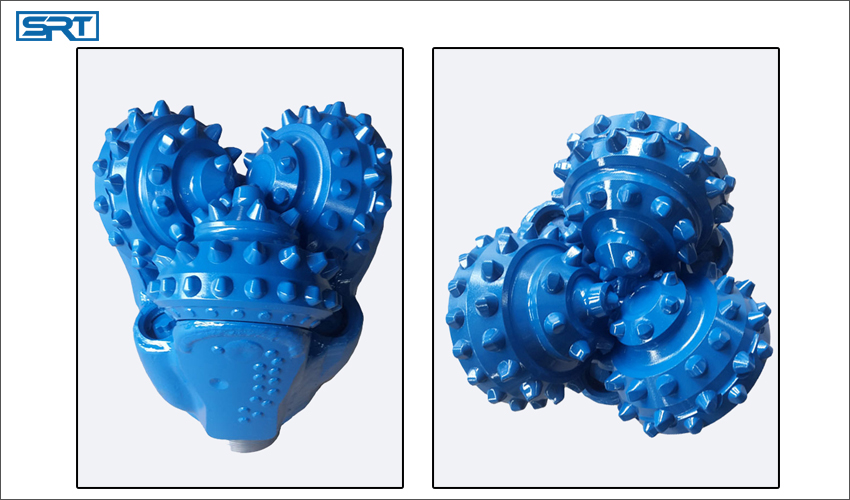

216mm 8 1-2 inch JZ kingdream HJ517G oil well tricone bits

Tricone Bit

216mm 8 1-2 inch JZ kingdream HJ517G oil well tricone bits

Size : 8 1/2 "(215.9mm)

IADC CODE :517G

Bearing Type: Metal Sealed Journal

Processing Type: Forging

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection:4 1/2" API reg pin

Rotate Speed:240-50rpm

N/W,G/W : 42kg/ 47kg

Dimenstion:250*250*350mm

Application : oil/gas/energy well, deep water well drilling

  • Product Detail

Product Description



SSJ Series Tricone Drill Bit

SSJ series bit uses the most advanced sealing technology in the world. i.e. the metal face seal (MFS). It can perform consistently in high speed drilling applications, and  the ideal tool for drilling directional and horizontal wells and deep oil well. In comparison with conventional rubber O-ring sealed bits, the average working life (total drilling hours) of SSJ series bit under the condition of the same operating parameters can be increased by 35%. So if you need to drill ultra deep and high speed, metal sealed bearing tricone bits are your best choice. compared to USA Hughes and Smith bits,kingdream bits have same drilling performance but competitive price.



How to choose suitable tricone rock bit

The suitable bits with higher cost performance is the most important.Such as, high class bits are not cost-effective for general water well drilling. Because the water well drilling rig can’t drive the supreme quality bits to perform their best.But for deep water drilling, first class rock bits are cost-effective though it’s worth more.When inquiring, Please tell us more details about your drilling project so that we can recommend best suitable bits for your reference.

Tricone Bit Instruction

Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation.

Storage:There is rubber piece and lubricating grease in tricone bit,So it can not be stored in the open air.and be damp proof. The temperature should be 0-40 centigrade degrees. No welding,heating and other processing is permitted on bit.

Validity:The roller bit should be utilized within four years after resembling.

Type Selection:Appropriate bit should be choosen according to drilling formation lithology and reference on the conjoint well

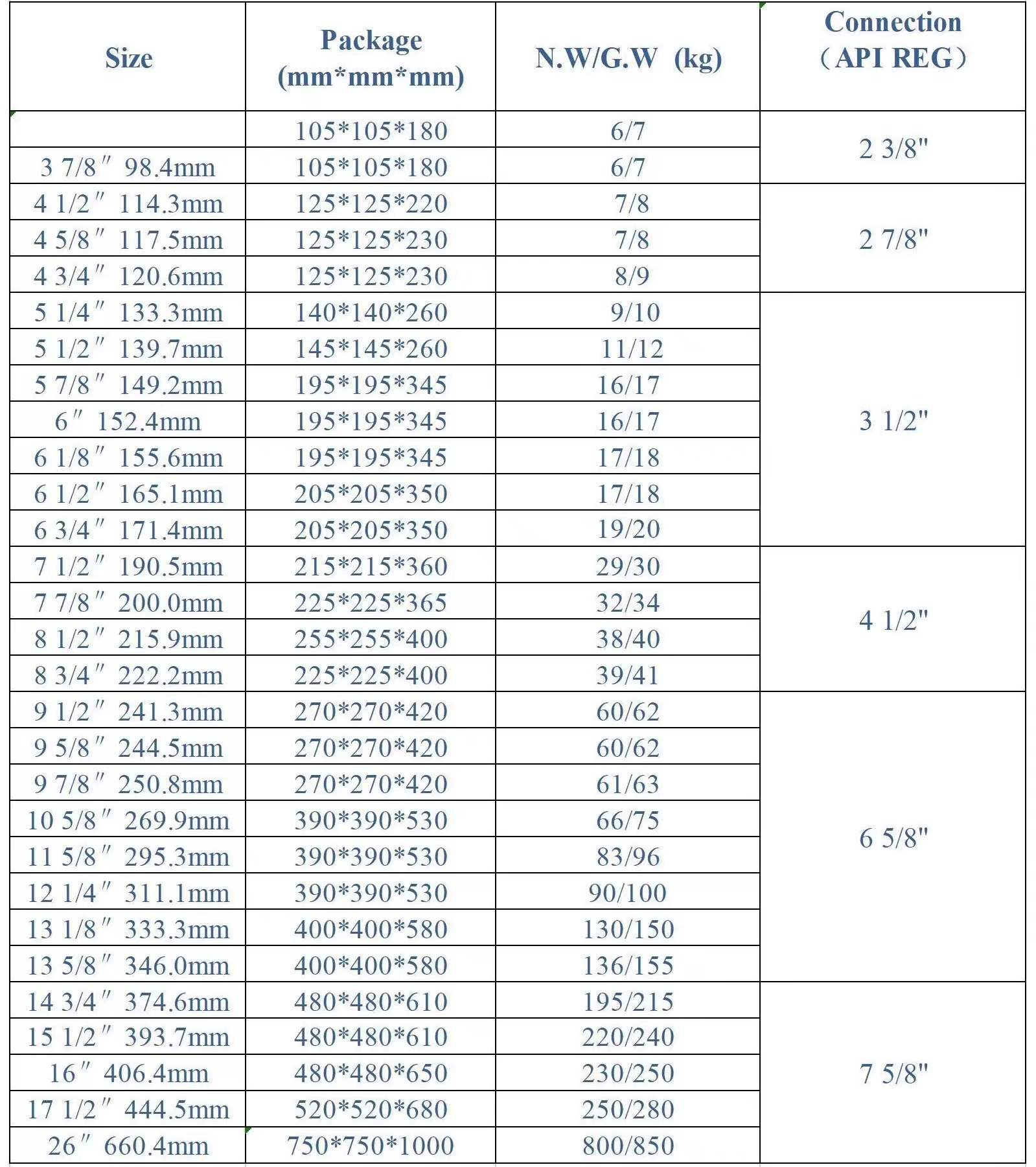

Siruite Roller Bit Packages for Delivery
