PDC Non-coring Bit Sintered flat PDC non-coring bit is a matrix body type.It’s made from tungsten carbide and alloy steel. Tungsten carbide is one kind of metal materials which is made of refractory metal carbide and binder by powder metallurgy. Tungsten carbide character is very hard and wear-resistance that makes the drill bit have a long service life. And the PDC cutters can be replaced according to drilling condition.Superior raw material makes PDC bits serve wide applications in hole drilling such as coal mining ,water and oil well drilling.

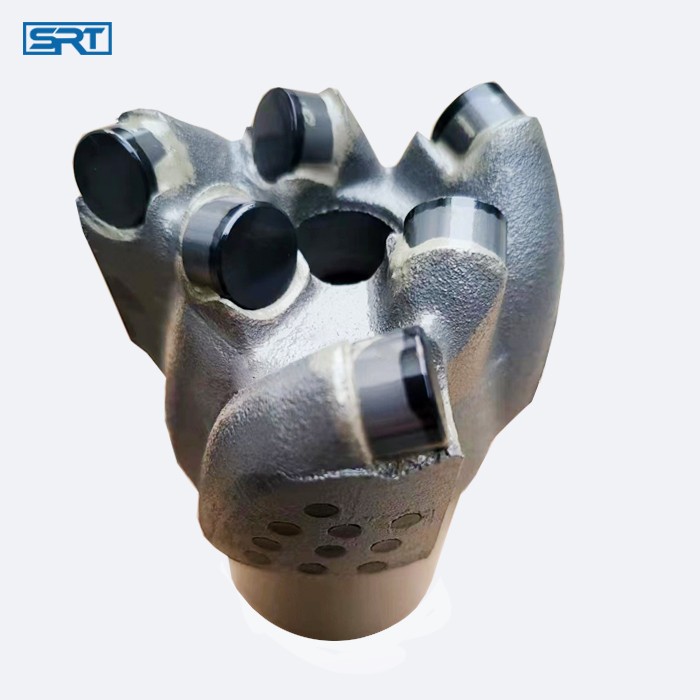

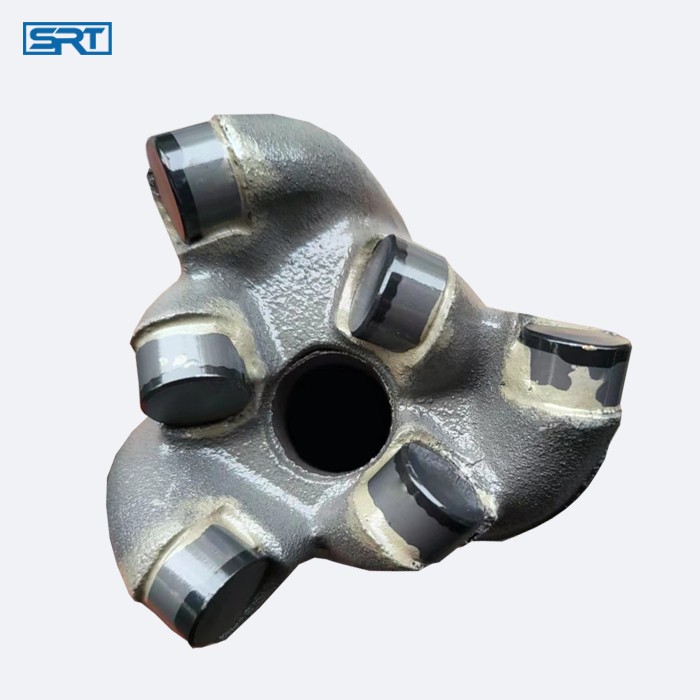

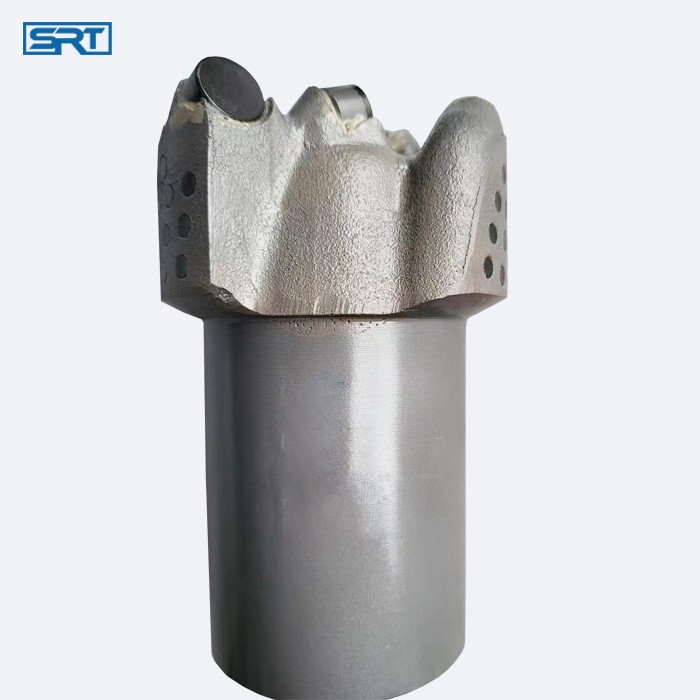

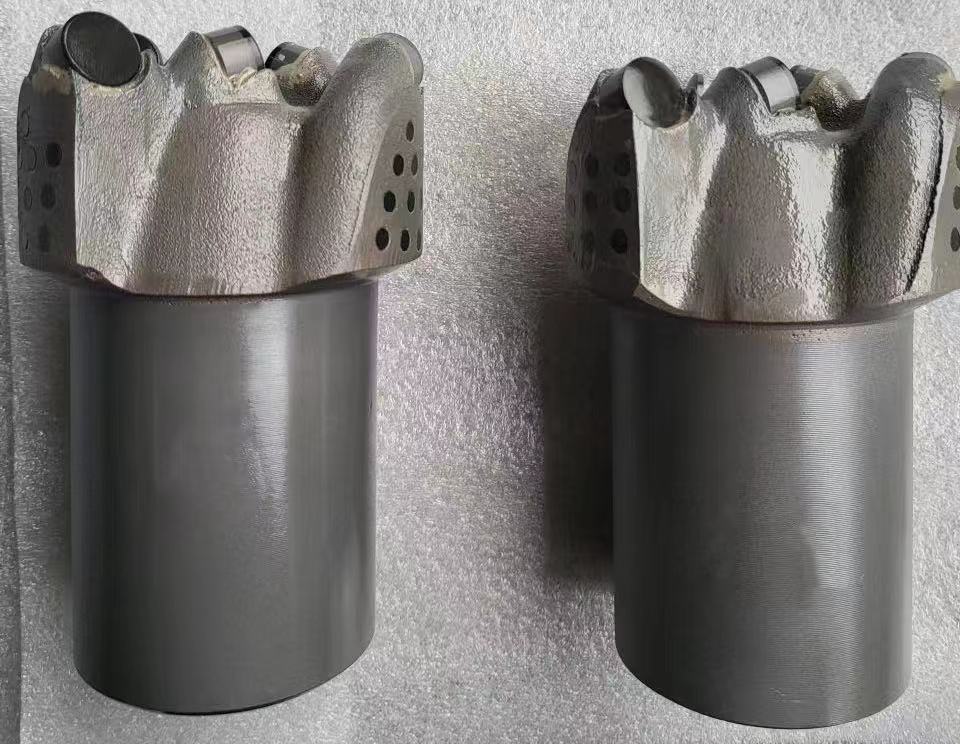

Siruite High Impact Resistance Diamond PDC non-coring bits show
Left : Flat Face Diamond Cutter Right: Cambered Face Diamond Cutter
Flat Face PDC Bit Main Specifications
PDC Flat face Drill Bit-Matrix Body |
|
|||||||
Size |
Head Type |
Body Type |
PDC cutter |
Protect Type |
Thread Connection |
Hole No. |
Hole Size(ID) |
Suitable Formation |
46 |
Flat PDC bit |
Matrix |
4 |
pcd /tsp reinforced |
AW/BW/API |
1 |
15mm |
F=(5-12) Suitable for hard,very hard,ultra hard rock formation drilling |
56 |
Flat PDC bit |
Matrix |
4 |
pcd /tsp reinforced |
AW/BW/API |
1 |
15mm |
|
60 |
Flat PDC bit |
Matrix |
5 |
Pcd /tsp reinforced |
AW/BW/API |
1 |
15mm |
|
66 |
Flat PDC bit |
Matrix |
5 |
pcd /tsp reinforced |
AW/BW/API |
1 |
15mm |
|
76 |
Flat PDC bit |
Matrix |
6 |
pcd /tsp reinforced |
AW/BW/API |
1 |
15mm |
|
95 |
Flat PDC bit |
Matrix |
7 |
pcd /tsp reinforced |
AW/BW/API |
1 |
15mm |
|
113 |
Flat PDC bit |
Matrix |
10 |
pcd /tsp reinforced |
AW/BW/API |
1 |
15mm |
|
133 |
Flat PDC bit |
Matrix |
11 |
pcd /tsp reinforced |
AW/BW/API |
3 |
15mm |
Tungsten carbide sintered matrix body non core PDC bit(PDC flat face frill bit) is made by with PDC cutter brazed to Matrix Body. With
higher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters,
the bit has enhanced reliability and drilling efficiency.
ADVANTAGES
1. ISO9001: 2008 certificated, CE certificated
2. Economic grade,general grade,enhanced grade,top grade PDC bits are avaiable,to meet your different drilling requirement.
3.We make matrix bit ourselves,good quality control,good cost
4.Enough stock ,fast shipment.
gher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters,
the bit has enhanced reliability and drilling efficiency.
APPLICATIONS
Mainly used in coal mining,water well,geothermal well,dam construction,blasthole,oil das drilling. Suitable for medium hard to hard,very hard rock,like limestone,sandstone,quartz,gravel,marble,granite,basalt,etc.
