well grouting drilling flat face PDC diamond drill bits

Mining N core bit

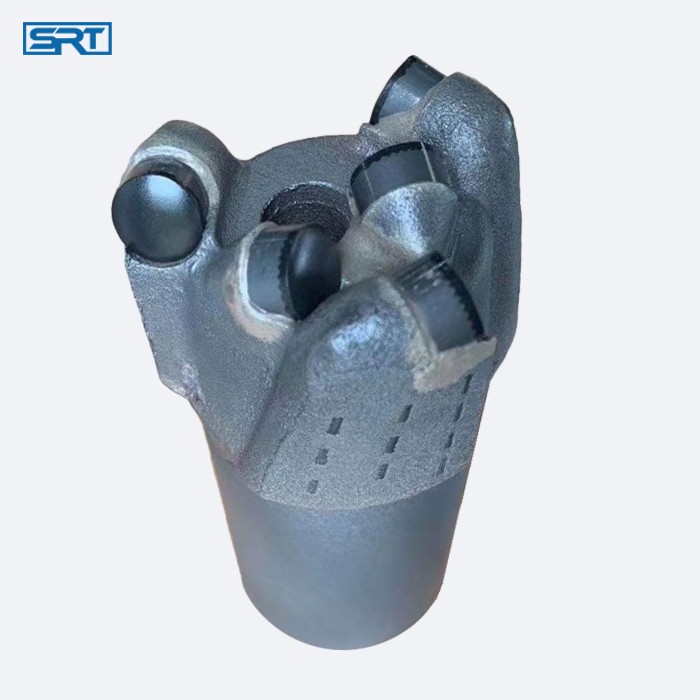

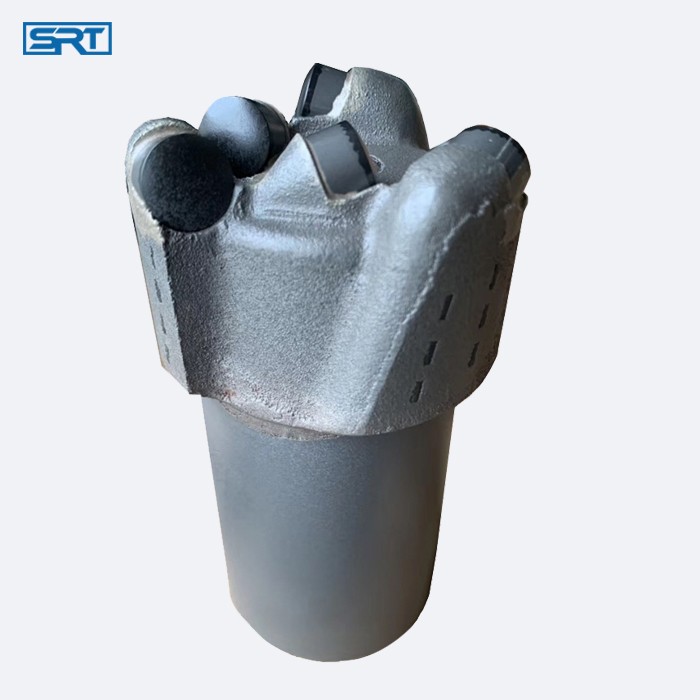

66mm AW BW thread well grouting drilling flat face PDC diamond drill bits

Material: Carbon Steel, tungsten carbide , dimaond PDC cutters

Size:66mm or 65mm

Diamond Qty:5pcs

Diamand Cutter Charater:high impact resistance

Gauge Protection:PCD or TSP strips

Quality Level: Standard,Reinfored,Premium

Thread Connection:BW ,AW, API or as required

Processing Type: Forging

Certificate: ISO9001

Application: Mineral Mining and Water Well Drilling

Condition: New

Machine Type: Drilling Tool

Payment Term:T/T,L/C,Western Union,Alipay

Delivery Port: Beijing/Shanghai/Tianjin




  • Product Detail

PDC Non-coring Bit Sintered flat PDC non-coring bit is a matrix body type.It’s made from tungsten carbide and alloy steel. Tungsten carbide is one kind of metal materials which is made of refractory metal carbide and binder by powder metallurgy. Tungsten carbide character is very hard and wear-resistance that makes the drill bit have a long service life. And the PDC cutters can be replaced according to drilling condition.Superior raw material makes PDC bits serve wide applications  in hole drilling such as coal mining ,water and oil well drilling.

A sintered flat face PDC diamond bit is a drill bit designed for efficient and fast drilling through hard rock formations. Its flat face design allows for greater contact with the rock surface, resulting in faster drilling speeds and straighter boreholes. Additionally, the use of high-quality diamond material in its construction makes it highly durable and long-lasting.


Siruite High Impact Resistance Diamond PDC non core bits show




Flat Face PDC Bit Main Specifications

PDC Flat face Drill Bit-Matrix Body

Size

Head Type

Body Type

PDC cutter

Protect Type

Thread Connection

Hole No.

Hole Size(ID)

Suitable

Formation

46

Flat PDC bit

Matrix

4

pcd /tsp

reinforced

AW/BW/API

1

15mm

F=(5-12)

Suitable for hard,very hard,ultra hard rock formation drilling

56

Flat PDC bit

Matrix

4

pcd /tsp

reinforced

AW/BW/API

1

15mm

60

Flat PDC bit

Matrix

5

Pcd /tsp

reinforced

AW/BW/API

1

15mm

66

Flat PDC bit

Matrix

5

pcd /tsp

reinforced

AW/BW/API

1

15mm

76

Flat PDC bit

Matrix

6

pcd /tsp

reinforced

AW/BW/API

1

15mm

95

Flat PDC bit

Matrix

7

pcd /tsp

reinforced

AW/BW/API

1

15mm

113

Flat PDC bit

Matrix

10

pcd /tsp

reinforced

AW/BW/API

1

15mm

133

Flat PDC bit

Matrix

11

pcd /tsp

reinforced

AW/BW/API

3

15mm

The "flat face" design of the PDC diamond bit means that the cutting face of the bit is flat, rather than angled or conical. This design provides a larger contact area between the bit and the rock formation, allowing for more efficient cutting and faster drilling speeds. The flat face design also reduces the likelihood of deviation during drilling, resulting in a straighter borehole.

APPLICATIONS

Mainly used in coal mining,water well,geothermal well,dam construction,blasthole,oil das drilling. Suitable for medium hard to hard,very hard rock,like limestone,sandstone,quartz,gravel,marble,granite,basalt,etc.
