Product Description

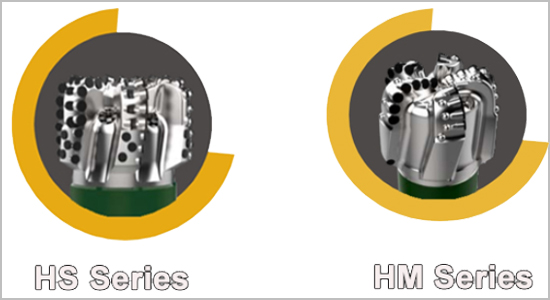

HS Series Premium PDC Bit

HS series PDC bit is tough and durable drilling tool, the mechanically simple fixed cutter designation allows it to go through complicated HDD drilling project and super deep vertical oil well drilling with unrivalled speed and boring quality . It has been proven over hundreds of working cases, HS series is designed and built to the highest engineering and manufacturing standards by Precise Drilling Materials and Components.It’s our Premium Quality PDC tools. HS Series fixed cutter PDC bit is API7-1 and ISO9001-2015 standard and available in sizes ranging from 4 1/2” to 17 1/2”.

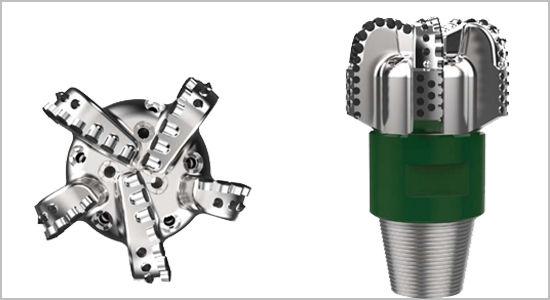

PDC Drill Bit Structure

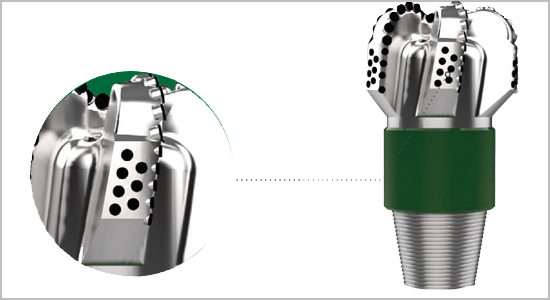

Inclined blade design to increase the stability of the drill bit and improve the taper rate.

Siruite offers a wide variety of fixed-gear drills(PDC and diamond set) that can be used in a wide variety of operating environments.Directional drilling steel or matrix body PDC bits for improved directional drilling performance.

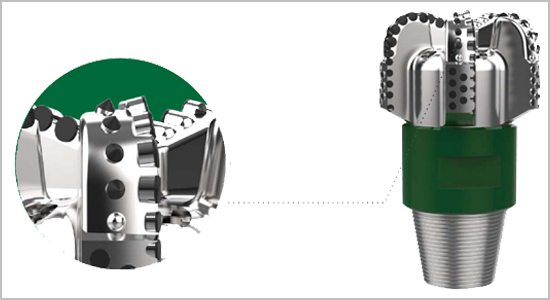

Eagle claw design for high drilling machine speeds for well-drillable lithologies.

Features and Applications

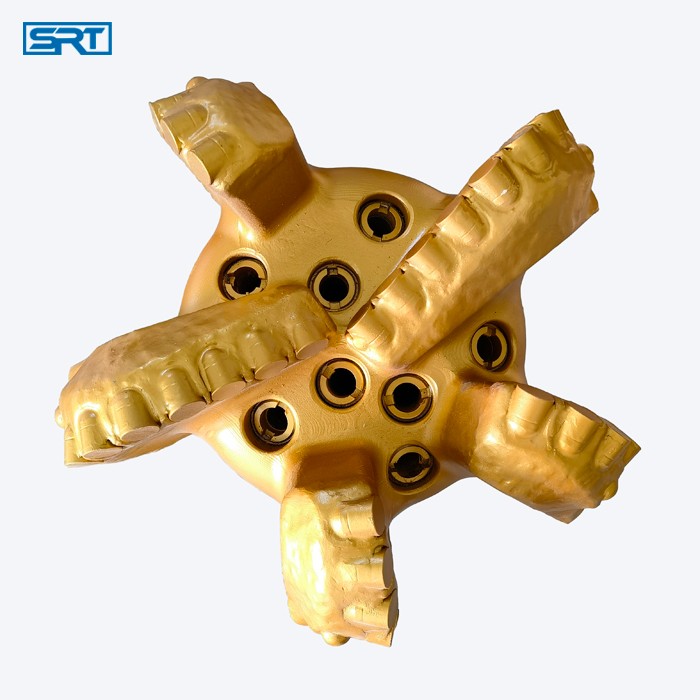

Steel body PDC bit using tiny arc-type double rows five spiral blades asymmetric and Medium paraboliccrown design with different structure patent cutters are laid out at different location of the bit to ensure its high aggressi-veness and long bit life .Effectively improve the rate of speed .Dynamic flow simulating technology is used for hydraulicdesign to ensure optimum bottom hole flow patters and anti-balling . Medium soft to hard formations with high compressive strength and abrasive ,such as Mudstone, L.imestone, Anhydrite,Sandstone and so on.

What Kind of PDC Bit is Suitable

Well Drill PDC Bit Types

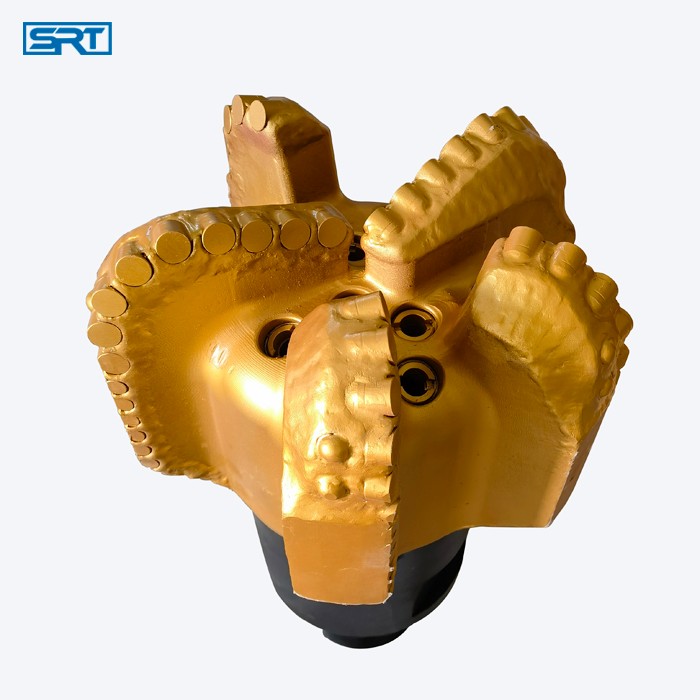

Steel Body PDC bit	These steel bodied bits have advanced hydraulics and forward advanced blades that significantly increase ROP. The bits are specifically designed to increase productivity in sandstone and shale formations. They are customizable with flushing holes and fixed or adjustable nozzles,along with blade count and diamond cuter size configuration options.
Matrix Body PDC bit	The matrix body PDC bits provide a stronger wear resistance due to the matrix powder that is applied to the body. The matrix body style is able to withstands harder compositions,such as dolomite and limestone. Bits are fully customizable with flushing holes and fixed or adjustable nozzles,along with blade count and diamond cutter size configuration options.

PDC Center Drill Bit Main Applications:PDC bit can be customized for oil well,water well, mining, explorer well drilling. Suitable Formation :Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. Main Features: 1.Bit Diameters: 3"~22" etc.2.Body Type: Matrix or Steel4.3.Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc. 4.Blades:3~9 Wings.

PDC Matrix Body Core Bit Main Applications :PDC core bit can be customized for oil well,water well, mining, explorer well drilling. Suitable Formation: Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble. Available Size: 75/54mm,94/74mm,113/89mm,113/109mm,153/129mm,215/105mm,etc.

PDC Drill Bit Packages By Sea /By Air

(plywood+iron case+foam cushion)

---
