Horizontal Directional Drilling tools TCI tricone bits

Tricone Bit

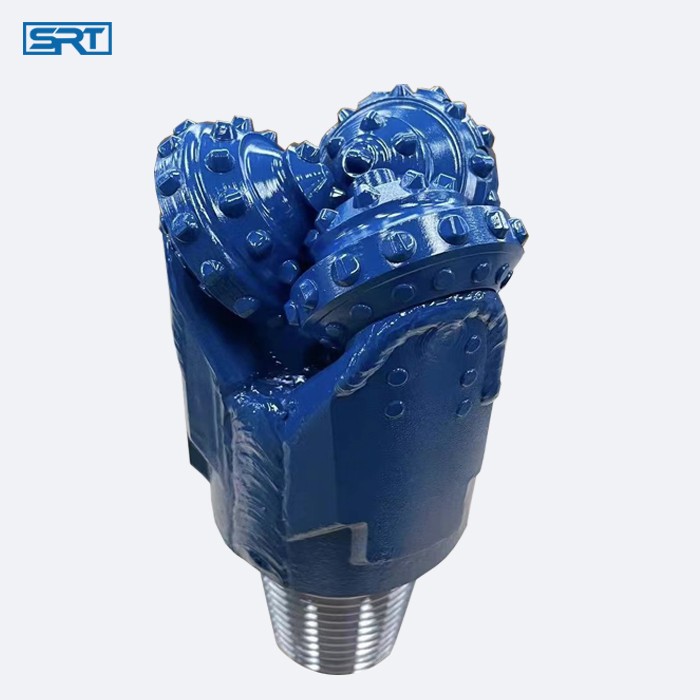

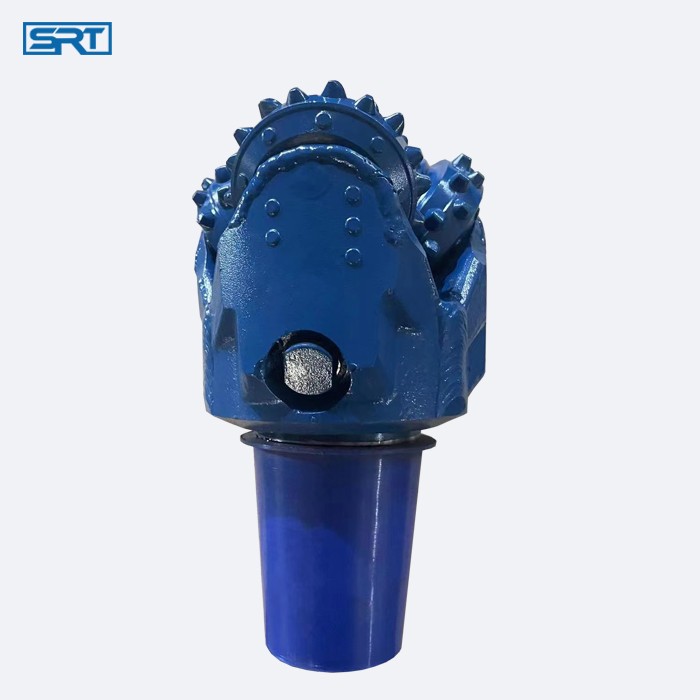

6 inch Horizontal Directional Drilling tools TCI tricone bits for water borehole drilling rig equipment


Size :6"( 152.4mm)

IADC CODE :537

Bearing Type: Rubber Close Journal

Processing Type: Forging

Jet Nozzles:Center nozzle

Certificate: API 7-1

Pin Connection: 3 1/2" API reg pin

N/W,G/W : 18/20kg

Dimenstion: 220*220*365mm

Application :geological exploration hole drilling, water well,mineral mining

  • Product Detail


SSH Series Three Roller Cone Bit

The SSH series tricone bit is widely used in borehole opening, exploration well and ore mining industry .it should be implemented according to the specified operation procedure.Drill down well in the end,it is necessary to gently slow pressure (drilling pressure 5-15KN,speed 60R/min)run for half an hour before drilling at normal pressure.Start the turntable on the condition of no pressure,the drilling pressure must be reduced before the drilling tools stop and lift the drill bit.In the process of drilling operation must be smooth,uniform drilling. found the bit bouncing and other abnormal conditions.should timely analysis and take effective measures. Concerning SSH series bits, sizes range from 3 7/8" to 8 1/2".

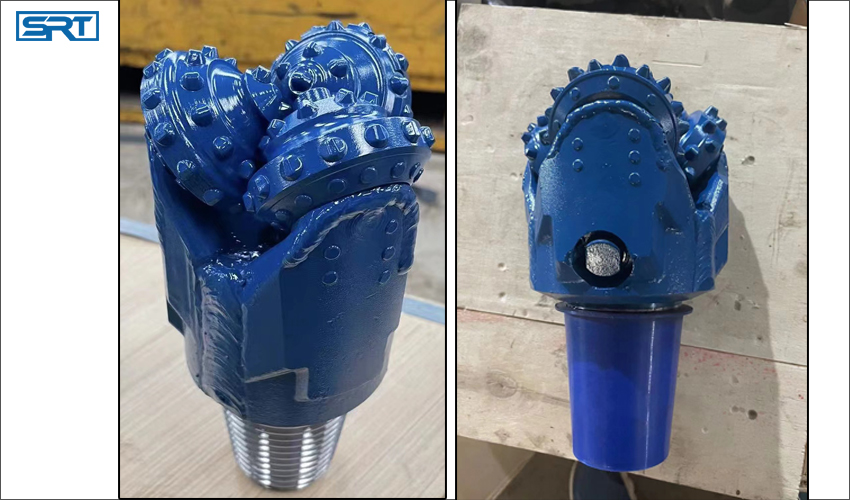

6 inch Horizontal Directional Drilling tools TCI tricone bits for water hole drilling rig


SSH series bit sizes and operation parameters

Siruite Tricone Bits Regulars Sizes


How to choose suitable tricone rock bit

Formation Type: Understand the type of formation you will be drilling into. Different formations require specific tricone bit designs and cutting structures. For example, soft formations may benefit from a bit with large, widely spaced teeth, while hard formations may require a bit with smaller, closely spaced teeth.

Bearing Type: Tricone bits come with different bearing types, including journal bearings and sealed roller bearings. Journal bearings are cost-effective but less durable, while sealed roller bearings offer better performance and longevity. Choose a bearing type that suits your drilling conditions and budget.

Bit Size and Connection: Consider the required bit size and connection type. The bit size should match your drilling requirements, and the connection should be compatible with your drilling rig's specifications.

Tooth Type: Tricone bits can have different tooth types, such as milled tooth or tungsten carbide inserts (TCI). Milled tooth bits are suitable for softer formations, while TCI bits are more effective in harder formations. Evaluate the formation hardness to determine the appropriate tooth type.

Gauge Protection: Check if the tricone bit has adequate gauge protection. The gauge refers to the outer edge of the bit, which is prone to wear and damage. Enhanced gauge protection helps prolong the bit's lifespan and maintain stability during drilling.

Brand Reputation: Consider the reputation and reliability of the tricone bit manufacturer. Reputable brands often provide high-quality, durable bits that deliver consistent performance.

Budget: Set a budget for your tricone bit purchase. While it's essential to find a cost-effective option, prioritize quality and performance over the lowest price. Investing in a durable bit can save you money in the long run.

Tricone Bit Instruction

Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation.

Storage:There is rubber piece and lubricating grease in tricone bit,So it can not be stored in the open air.and be damp proof. The temperature should be 0-40 centigrade degrees. No welding,heating and other processing is permitted on bit.

Validity:The roller bit should be utilized within four years after resembling.

Type Selection:Suitable bit should be choosen according to drilling formation lithology and reference on the conjoint well.

Siruite Roller Bit Packages for Delivery by Air/Sea
