HJ series kingdream tricone bit for HDD project and oilfields borehole drilling

Tricone Bit

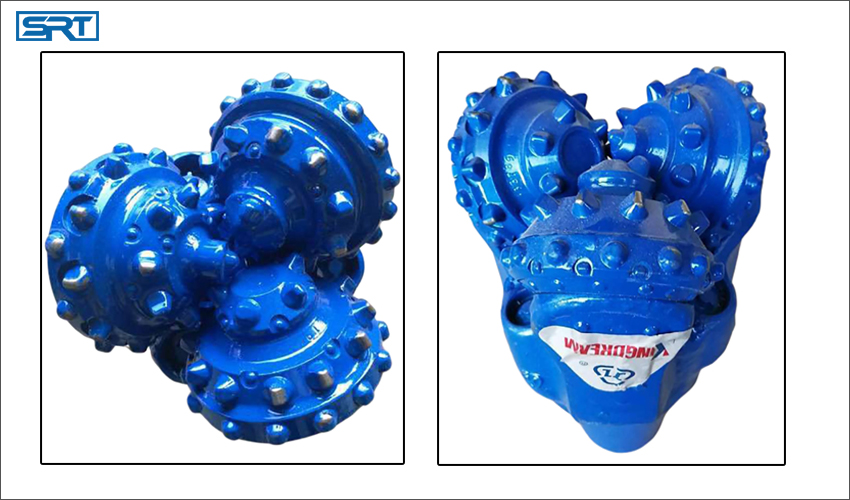

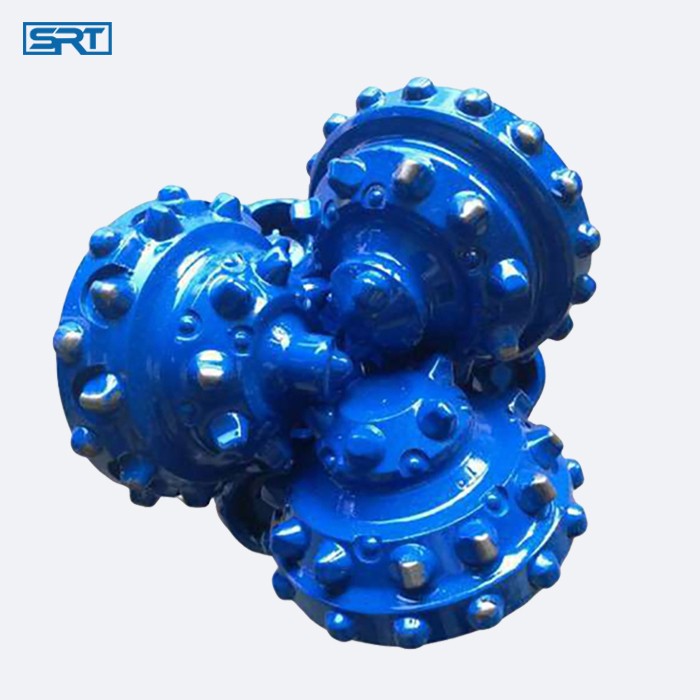

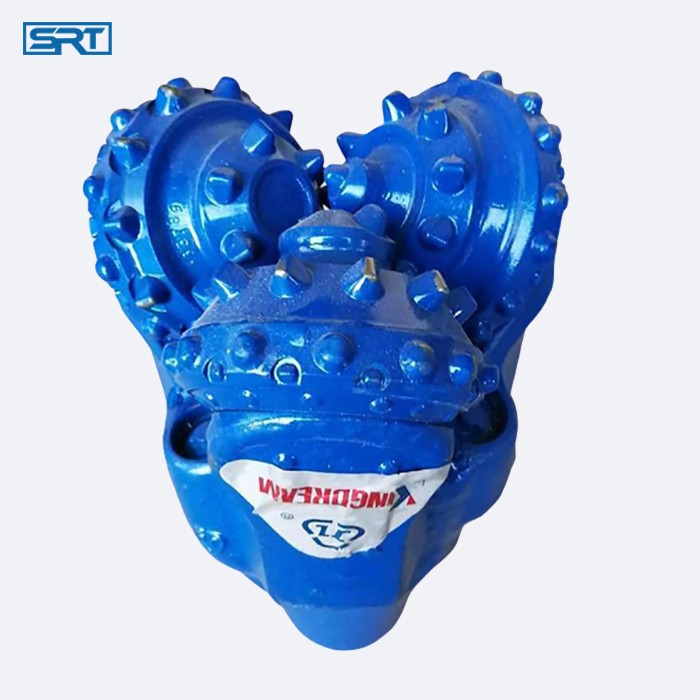

6 inch 152mm HJ series kingdream tricone bit for HDD project and oilfields borehole drilling

Size : 6"(152.4mm)

IADC CODE :517G

Bearing Type: Metal Sealed Journal

Processing Type: Forging

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection:3 1/2" API reg pin

N/W,G/W : 20kg/ 22 kg

Dimenstion: 195*195*345mm

Application : deep oilfields/gas/petroleum drilling

  • Product Detail

Product Description



SSJ Series Tricone Drill Bit

SSJ series is metal face seal (MFS).Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the bearing is greatly improved. This roller cone bit provides superior drilling performance. High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high toughness in combination with optimized compact numbers and rows, the exposure height and special shaped compacts. For steel tooth bit, the tooth surface is hardfaced with new type of wear resistant material and thus extended working life of the cutting structure while maintaining high ROP. SSJ series bit uses the most advanced sealing technology in the world, i.e. the metal face seal (MFS). It can perform consistently in high speed drilling applications, and is the ideal tool for drilling directional and horizontal wells. In comparison with conventional rubber O-ring sealed bits, the average working life (total drilling hours) of HJ series bit under the condition of the same operating parameters can be increased by 35%.


152mm HJ series kingdream tricone bit for HDD project and oilfields borehole drilling





How to choose suitable tricone rock bit

The suitable bits with higher cost performance is the most important.Such as, high class bits are not cost-effective for general water well drilling. Because the water well drilling rig can’t drive the supreme quality bits to perform their best.But for deep water drilling, first class rock bits are cost-effective though it’s worth more.When inquiring, Please tell us more details about your drilling project so that we can recommend best suitable bits for your reference.

Tricone Bit Instruction

Transporation:As the small volume of tricone bit and heavy weight,safety should be noticed during transportation.The package is carton or wooden case.Waterproof and damp proof should be noticed during transportation.

Storage:There is rubber piece and lubricating grease in tricone bit,So it can not be stored in the open air.and be damp proof. The temperature should be 0-40 centigrade degrees. No welding,heating and other processing is permitted on bit.

Validity:The roller bit should be utilized within four years after resembling.

Type Selection:Appropriate bit should be choosen according to drilling formation lithology and reference on the conjoint well

Siruite Roller Bit Packages for Delivery
