IADC645 insert mineral mining roller tricone drill bits for drilling machinery

Tricone Bit

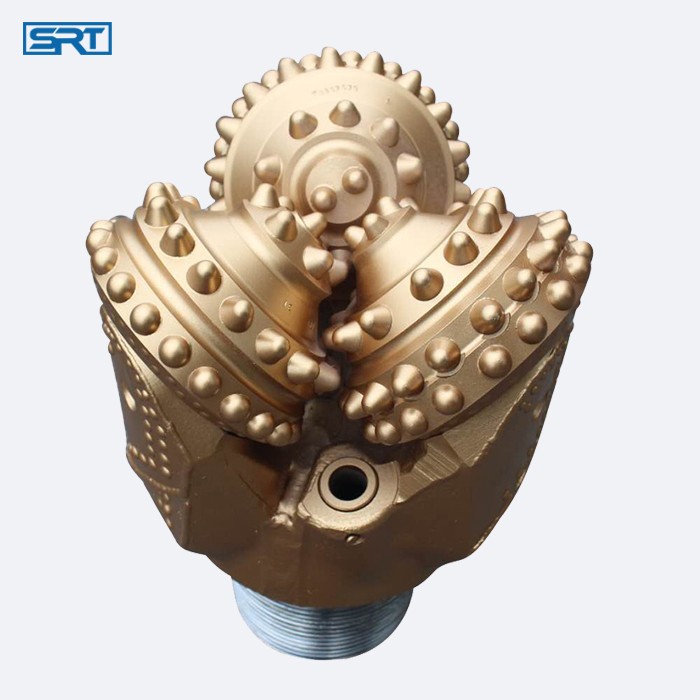

200mm IADC645 conical round teeth insert mineral mining roller tricone drill bits for drilling machinery

Size :7 7/8" (200mm)

Brand: Siruite

IADC CODE :645

Bearing Type: Sealed Roller Bearing

Suitable Formation:very hard Formation

Processing Type: Forging

Jet Nozzles:3 pcs

Certificate: API 7-1

Pin Connection: 4 1/2" API reg pin

N/W,G/W : 33kg/ 37kg

Dimenstion:300*300*460mm

Application : only for ore mining

  • Product Detail

SSK Series Mining Tricone Drill BitMining tricone bit is one of the main tools for blast hole and well drilling . Its service life and performance whether suitable for drilling or not, that had an great influence about the quality ,speed and cost of drilling project .The rock breakage by the tricone bit which used in mine is working with both of impact of teeth and the shear caused by slip page of the teeth, which bring high rock breaking efficiency and the low operation cost. The tricone bits developed and manufactured by our company are mainly used for large cake open pit mining, such as open pit coal mines,iron mines, copper mines and molybdenum mines, also the non-metallic mines. With the increasing in variety of type. It’s also widely used in quarrying,foundation clearing,hydro geological drilling , citing, tunneling in railway transportation department and shaft drilling in underground mines.Its enhanced protection can bear long runs in dense and fractured formation like iron ore.

200mm IADC645  tricone drill bits

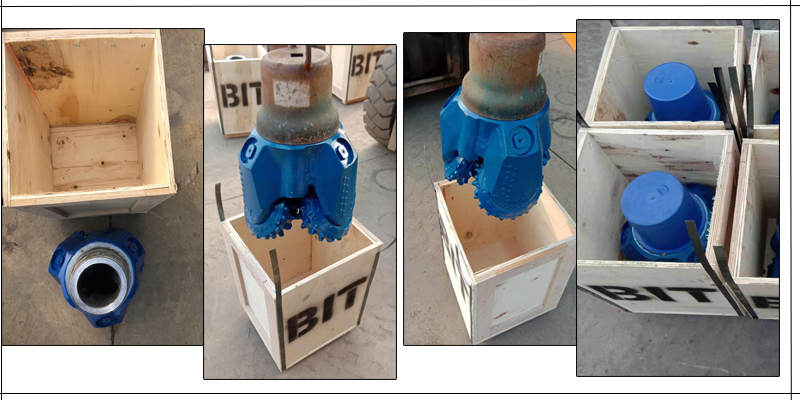

Siruite Roller Bit Packages for Delivery
