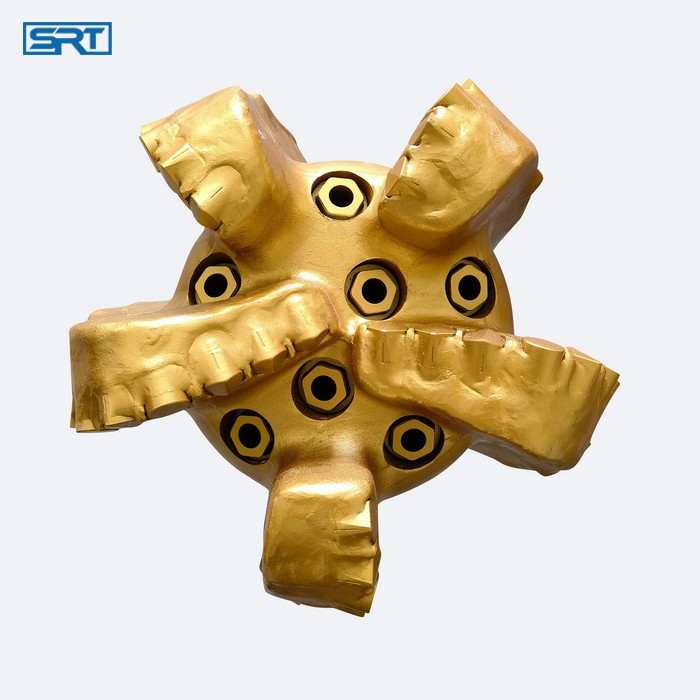

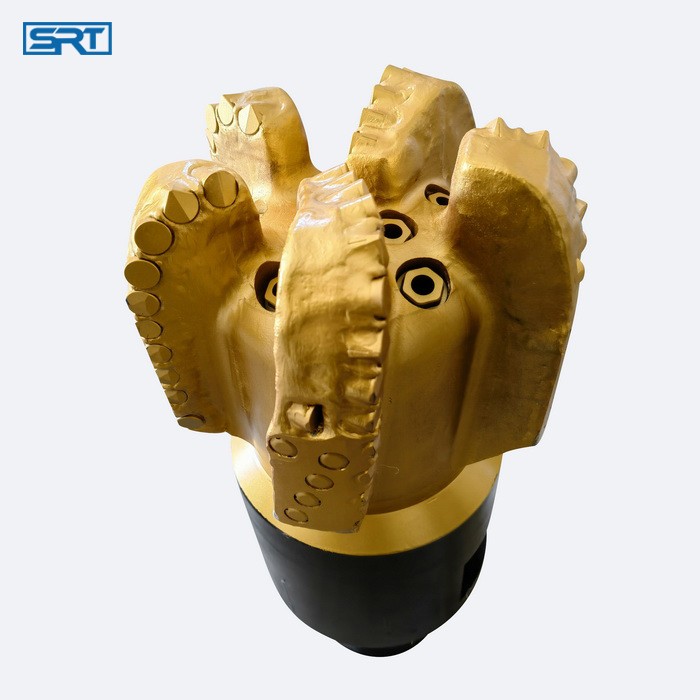

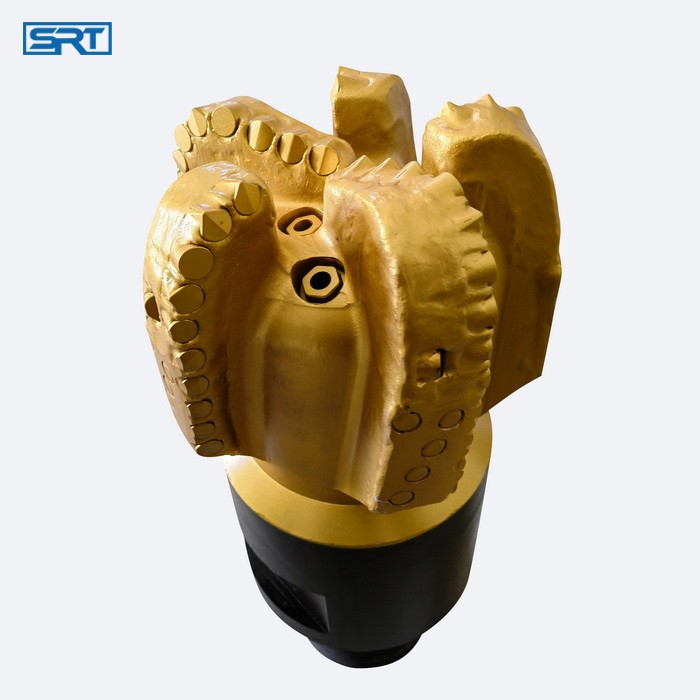

9 1-2 inch well drilling parts PDC bit for rig

HS Series Premium Diamond PDC Bit HS series PDC bit is tough and durable drilling tool, the mechanically simple fixed cutter designation allows it to go through complicated HDD drilling project and super deep vertical oil well drilling with unrivalled speed and boring quality . It has been proven over hundreds of working cases, HS series is designed and built to the highest engineering and manufacturing standards by Precise Drilling Materials and Components,Its body materials is high quality level 4145H steel.It’s our Premium Quality PDC tools. HS Series fixed cutter PDC bit is API7-1 and ISO9001-2015 standard and available in sizes ranging from 4 1/2” to 17 1/2”.

High Quality Level PDC Diamond Drill Bit Structure

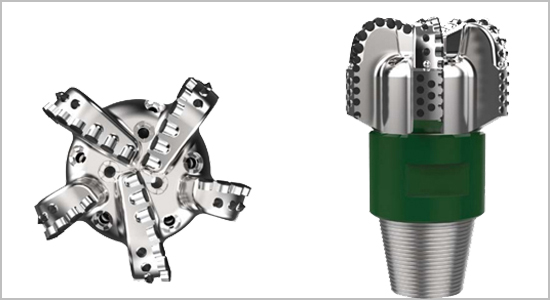

1) Conventional Siruite standard fixed-gear PDC drill bits are the main tools used in oilfields drilling. There bits are designed to provide quality performance and superior durability.the features of these bits,the type of blade,the layout of the blade and diamond cutters,and the geometry of the blade are continually being evaluated and improved in order to continually increase their value while reducing the cost of drilling.

2)Patented benz gears.it can form the best contacting point and get the best drilling effect.it has high rock -breaking efficiency,low cutting resistance,and can be directed to cutting removal.it has higher impact resistance and mud pack resistance than plane composite sheet.the cutting ridge line is beneficial to drill into the stratum,which has higher cutting efficiency and longer service life than flat one.it can adopt different substrates according to different stratum.

3) Patented axe-shaped gear, it adopts comprehensive substrate design to ensure the impact of the product,if forms the best contact point to obtain the best drilling effect.it has high rock-breaking efficiency,low cutting resistance,and can be directed to cutting removal.it has higher impact resistance and mud pack resistance than the plane composite sheet.the cutting ridge line is conductive to digging into the ground,which has higher cutting efficiency.
